Article number Select a color, please

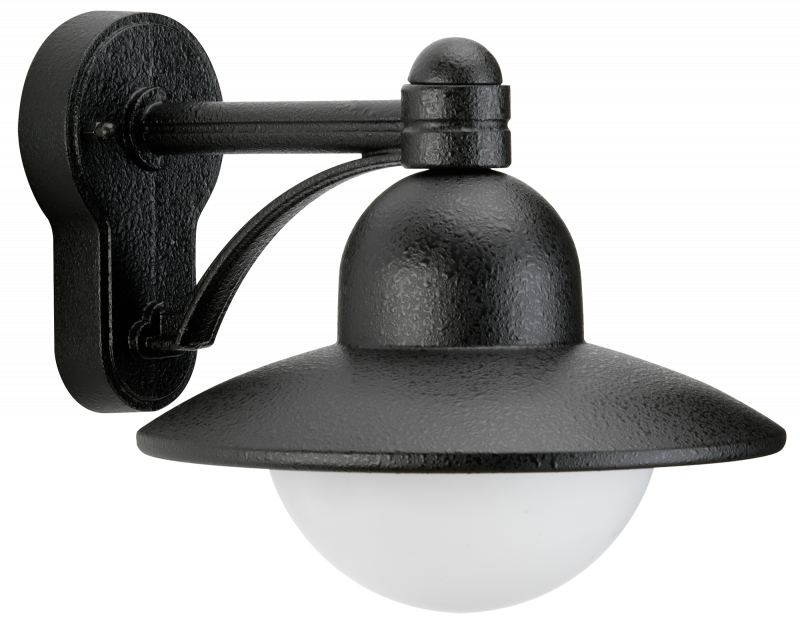

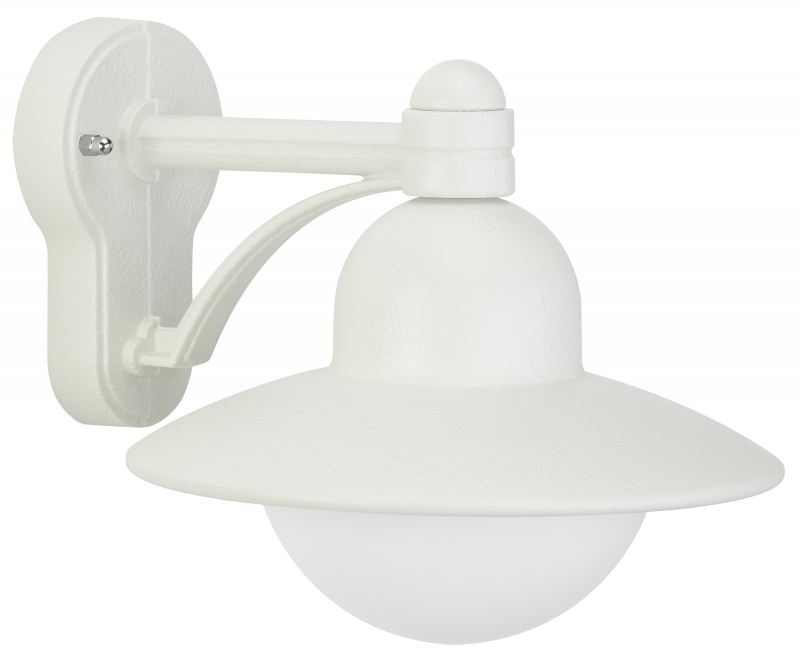

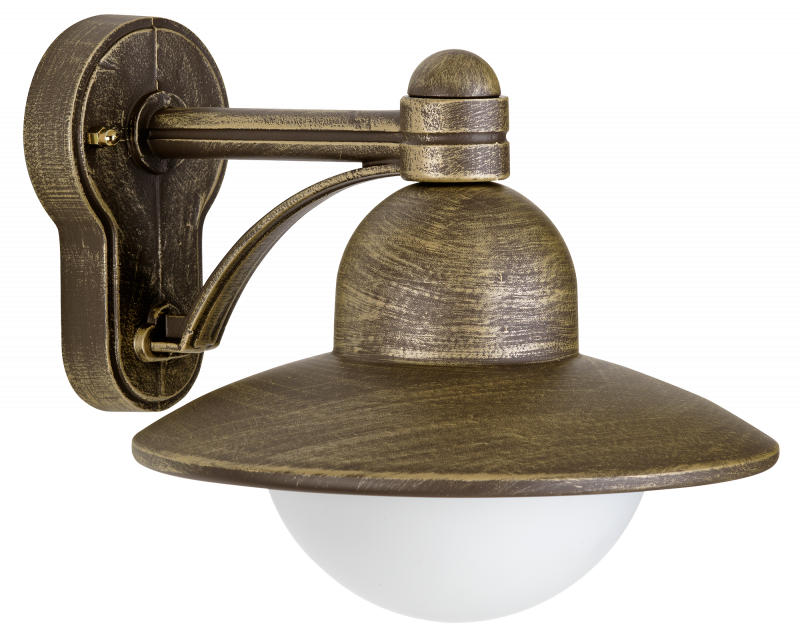

Wall lamp

type ..1850

169,40

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp holder
E27
Suitable for lamp power
1 - 57 W
Material cover
Glass opal
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 651850
Offertext
For: 661850
Offertext
For: 681850
Full catalog 21 / 22
Spare parts
90210094 - G 94, glass opal matt show
Accessories
651006 - Corner bracket angular type ..1006, Brown-Brass
Für: 651850
show
661006 - Corner bracket angular type ..1006, Black
Für: 661850
show
681006 - Corner bracket angular type ..1006, White
Für: 681850
show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Max. system power

57 W

Lamp holder

E27

Suitable for number of lamps

1

Height/depth

245 mm

Colour housing

Black, Brown-Brass, White

Dimming phase cut-off

Yes

Suitable for surface mounting

Yes

Light output

Direct

Material housing

Aluminium

Material cover

Glass opal

Conductor cross section

2.5 mm²

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-on

Yes

Degree of protection (IP)

IP44

Outer diameter

260 mm

Length

325 mm

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Number of poles

3

Connection type

Screwed terminal

Protection class

I

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Suitable for lamp power

1 – 57 W

Power factor

1

Dimming depending on control gear

Yes

Height

< 700 mm

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Style

Landhaus

Shape

Eckig
