Data sheet
Article number
Select a color, please

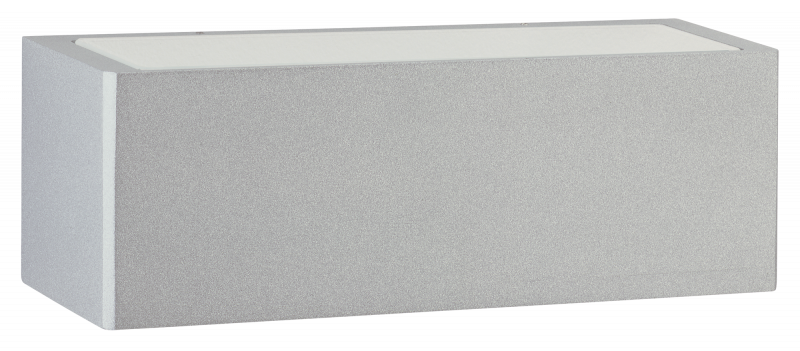

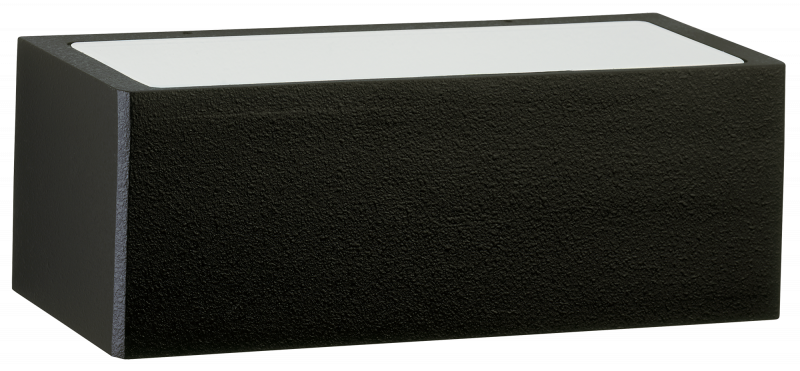

Wall lamp
type ..6368
€432,10 – €447,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
15.6 W
Rated luminous flux according to IEC 62722-2-1
1160 lm
Colour temperature
3000 K
Material cover
Glass opal
Spare parts
| 90220378 - G 378, frosted flashed glass ESG | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Lamp type | LED exchangeable |
| Suitable for number of lamps | 2 |
| Material housing | Aluminium |
| With light source | Yes |
| Colour housing | Black, Silver, White |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| No dim function | Yes |
| Material cover | Glass opal |
| Power factor | 0.9 |
| Suitable for surface mounting | Yes |
| With control gear | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour rendering index CRI | 80-89 |
| Colour of light | White |
| Rated luminous flux according to IEC 62722-2-1 | 1160 lm |
| Voltage type | AC/DC |
| Nominal voltage | 230 V |
| Height/depth | 100 mm |
| Light sharing | Symmetric |
| Type of control gear | LED operating device voltage-controlled |
| Photobiological safety according to EN 62471 | RG1 |
| Length | 100 mm |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Light output | Direct |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Exchangeable control gear | Yes |
| Max. system power | 15.6 W |
| Beam angle | Open beam/diffuse |
| Dimming depending on control gear | Yes |
| Colour temperature | 3000 K |
| Shape | Angular, Eckig |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Light output | 1-seitig |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Style | Modern |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Suitable for lamp power | 15.6 W |
| Connection type | Screwed terminal |
| Width | 300 mm |
| Surface protection housing | Lacquered |
| Height | < 700 mm |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Stroboscope effect value SVM | 0.4 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Unified Glare Ratio (UGR) | 1 |
