Data sheet
Article number 696101

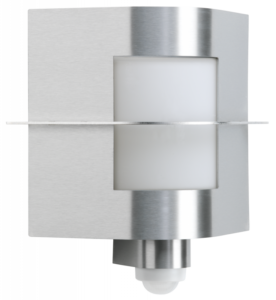

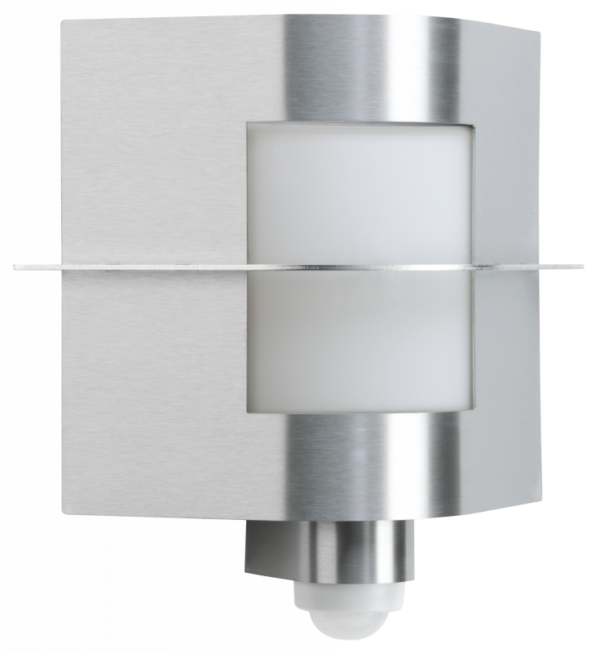

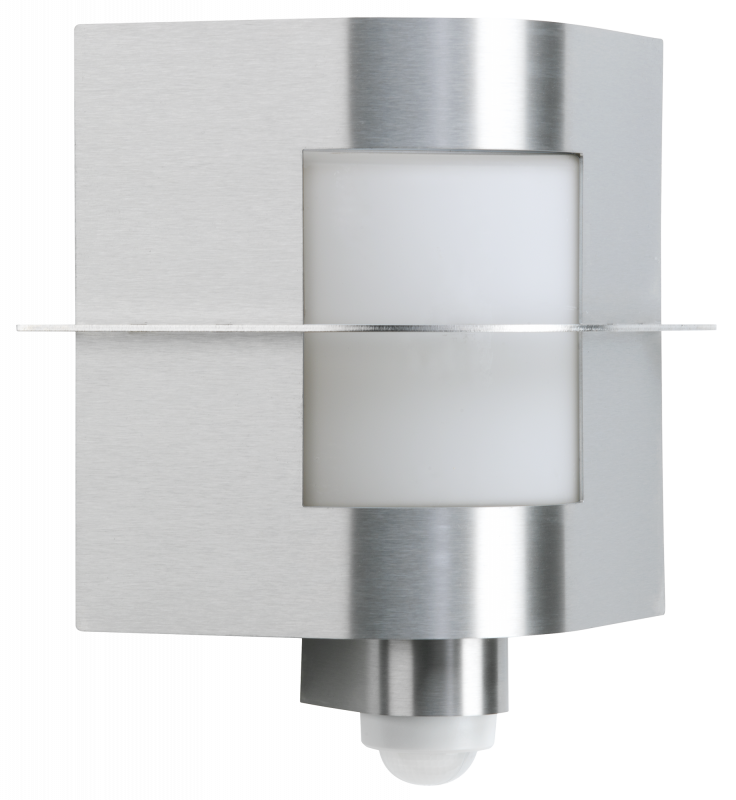

Wall light
type ..6101
€248,70
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
– with integrated motion detector -made of stainless steel with opal glass, with separate mounting plate made of cast aluminium. Equipped for 1 x incandescent lamps A60 75 W, socket E27.protection class IP 44 – protection class : 330 x 320 x 130 mm
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

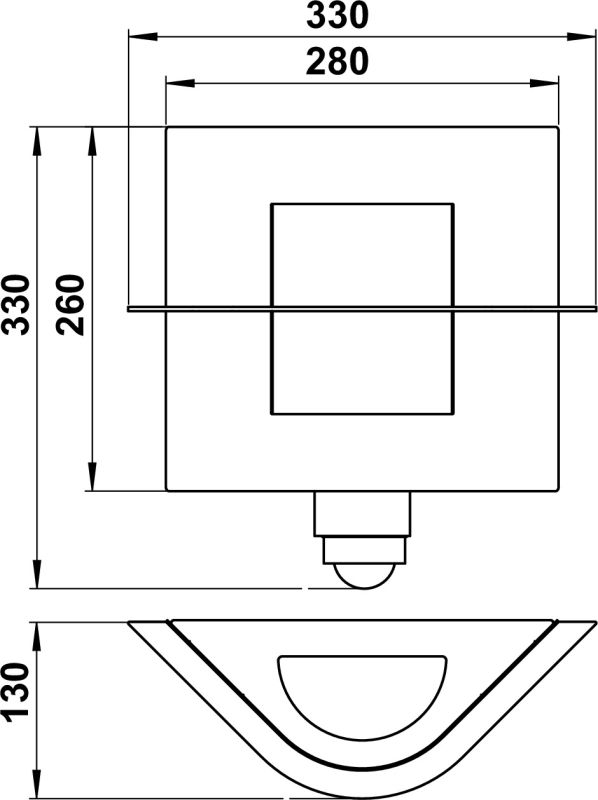

Dimensioned drawing
Instruction manual
Full catalog 21 / 22
Additional information
| Weight | 3,80 kg |
|---|---|
| Conductor cross section | 2.5 mm² |
| Suitable for lamp power | 1 – 75 W |
| Light sharing | Symmetric |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Degree of protection (IP) | IP44 |
| Power factor | 1 |
| Suitable for number of lamps | 1 |
| Nominal voltage | 230 V |
| Material housing | Stainless steel |
| Colour housing | Stainless steel |
| Material cover | Glass opal |
| Voltage type | AC |
| Type of control gear | Not required |
| Height/depth | 330 mm |
| Width | 330 mm |
| Lamp holder | E27 |
| Suitable for surface mounting | Yes |
| Max. system power | 75 W |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Height | < 700 mm |
| With light sensor | Yes |
| Suitable for wall mounting | Yes |
| Number of poles | 3 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Connection type | Screwed terminal |
| Coverage | 360 ° |
| Unified Glare Ratio (UGR) | 1 |
| Mounting Type | Wand |
| Protection class | I |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Type of wiring | Ending |
| Light output | Direct |
| Beam angle | Open beam/diffuse |
| Length | 130 mm |
| Style | Edelstahl, Modern |
| Light output | 1-seitig |
| With movement sensor | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Light type | Wandleuchte |
| Surface protection housing | Untreated |
| Photobiological safety according to EN 62471 | RG1 |
| Shape | Eckig |
