Data sheet
Article number 622273

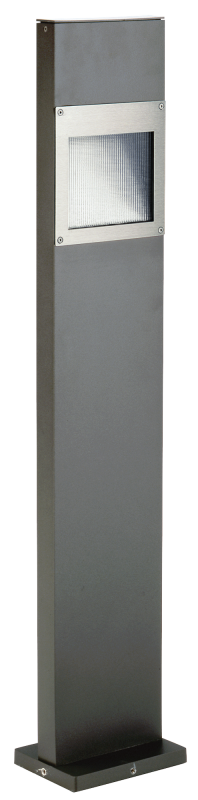

Bollard spotlight
type ..2273
€585,10
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Bollard spotlight type no. 2273, colour: stainless steel/anthracite, 1 x LED 13.4 W 1200 lm, A+, light colour warm white, 3000 K, with integrated converter AC/DC or for metal halide lamps with electronic ballast, ornamental safety glass, stainless steel
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Anthracite
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
13.4 W
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

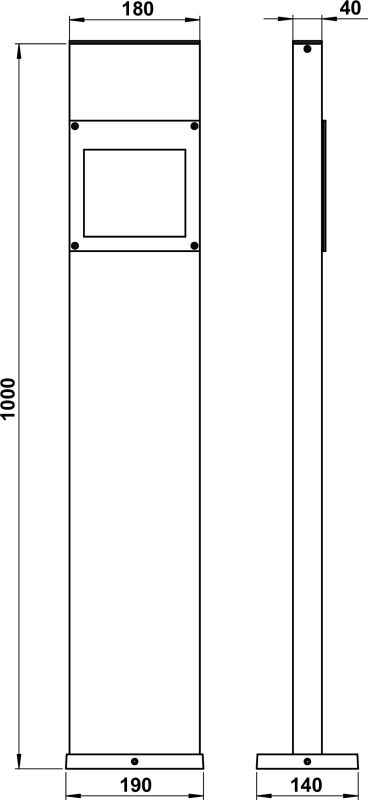

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 7,20 kg |
|---|---|
| Connection type | Screwed terminal |
| Suitable for lamp power | 13.4 W |
| Voltage type | AC/DC |
| Nominal voltage | 230 V |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP54 |
| With control gear | Yes |
| Surface protection | Lacquered |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.9 |
| Type of control gear | LED operating device current-controlled |
| Max. system power | 13.4 W |
| Colour of light | White |
| Colour temperature | 3000 K |
| Lamp type | LED exchangeable |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Stainless steel |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| With base plate | Yes |
| Material cover | Glass transparent |
| Protection class | I |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Exchangeable control gear | Yes |
| Light output | Indirect |
| Width | 180 mm |
| Light sharing | Asymmetric |
| Beam angle | Open beam/diffuse |
| Colour housing | Anthracite |
| Conductor cross section | 2.5 mm² |
| Type of luminaire | Bollard luminaire |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Height/depth | 1000 mm |
| Length | 40 mm |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Stroboscope effect value SVM | 0.4 |
| Light type | Standleuchte |
| Height | 700 – 1000 mm |
| Housing material quality | Stainless steel 304 (V2A) |
| Flickering value Pst LM | 1 |
| Shape | Eckig |
Related products
-

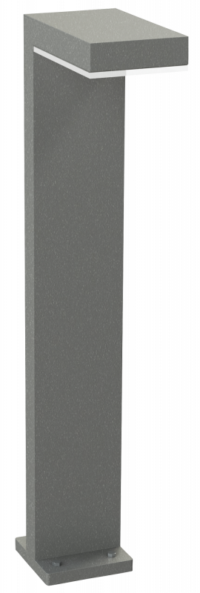

Bollard light type ..2087excl. VAT
