Data sheet
Article number 696012
House number light
type ..6012
€253,10
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

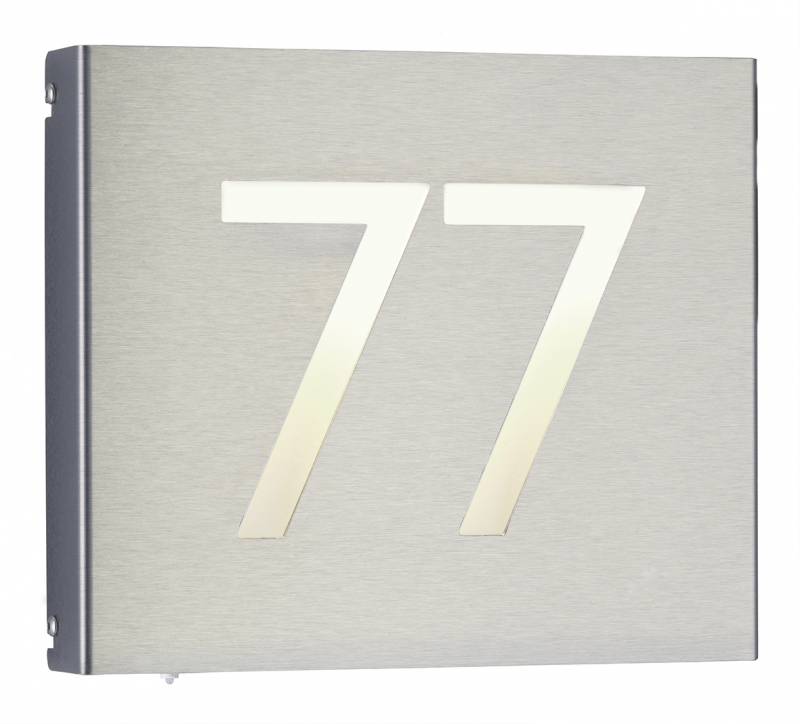

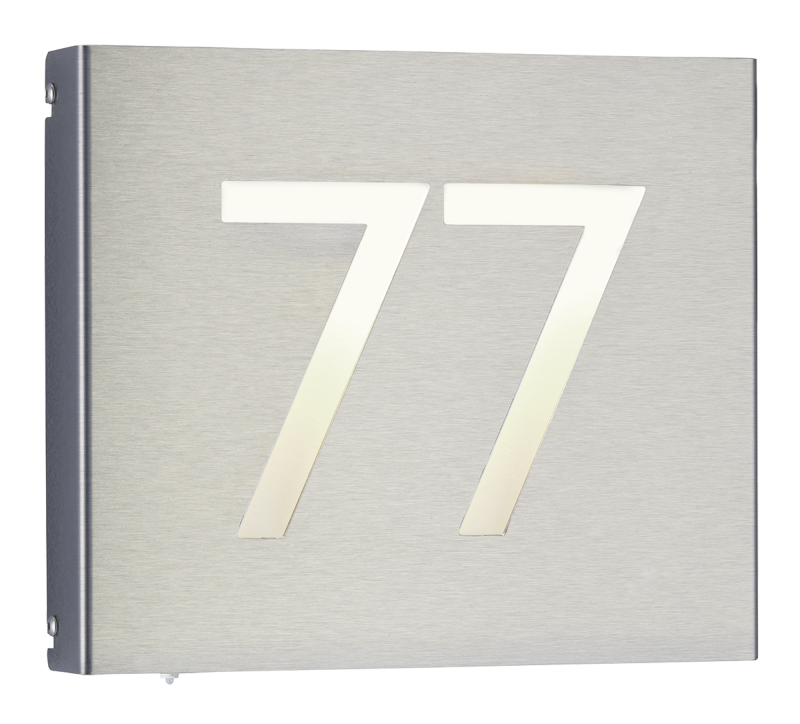

Albert house number light 696012 – 1 to 2 digits –
with lasered house number according to customer specification digit height 120 mm, made of stainless steel. Equipped with LED unit 2 Watt protection class IP 44 – protection class I
Features
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
2 W
Rated luminous flux according to IEC 62722-2-1
120 lm
Colour temperature
3000 K
Material cover
Without cover
Documents and files
Assembly instruction

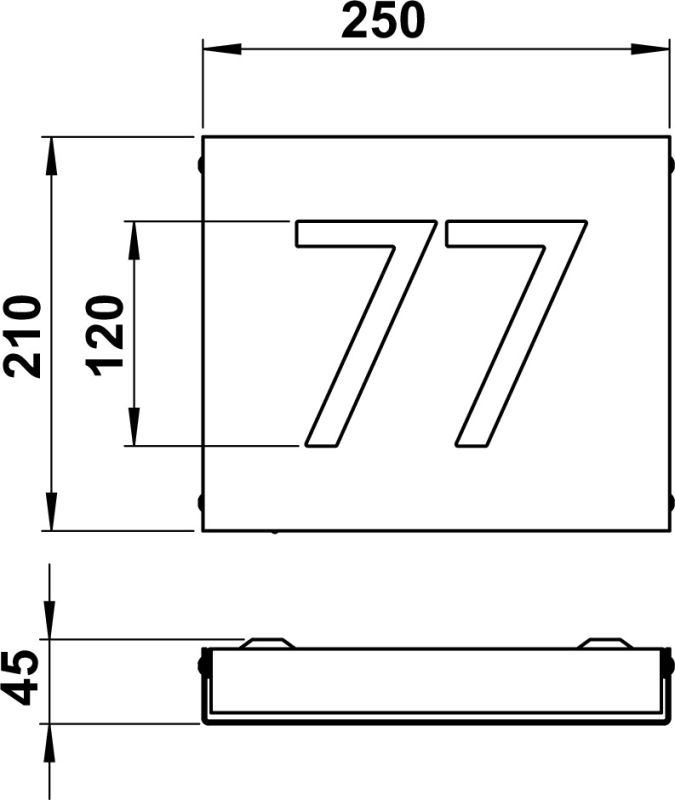

Dimensioned drawing
Full catalog 21 / 22
Additional information
| Weight | 2,40 kg |
|---|---|
| Length | 40 mm |
| With light source | Yes |
| Suitable for surface mounting | Yes |
| Colour housing | Stainless steel |
| Height/depth | 210 mm |
| Protection class | I |
| No dim function | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light sharing | Symmetric |
| Material housing | Stainless steel |
| With control gear | Yes |
| Lamp type | LED exchangeable |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Material cover | Without cover |
| Max. system power | 2 W |
| Power factor | 0.9 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour of light | White |
| Rated luminous flux according to IEC 62722-2-1 | 120 lm |
| Width | 250 mm |
| Suitable for number of lamps | 1 |
| Connection type | Screwed terminal |
| Light output | Direct |
| Dimming depending on control gear | Yes |
| Light output | 1-seitig |
| Mounting Type | Wand |
| Style | Edelstahl, Modern |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | Yes |
| Number of poles | 3 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (IP) | IP44 |
| With light sensor | Yes |
| Surface protection housing | Untreated |
| Height | < 700 mm |
| Unified Glare Ratio (UGR) | 1 |
| Conductor cross section | 2.5 mm² |
| Suitable for wall mounting | Yes |
| Suitable for lamp power | 2 W |
| Beam angle | Open beam/diffuse |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Colour rendering index CRI | 80-89 |
| Type of wiring | Ending |
| Colour temperature | 3000 K |
| Shape | Eckig |
