Weight	N/A
Model	Movement sensor
Creep-under protection	Yes
Material	Metal
Mounting Type	Surface mounted (plaster)
Suitable for wall mounting	Yes
Response value luminosity adjustable	Yes
Connection type	Screwed terminal
Scan angle	360 °
Optimum mounting height	1.8 m
Max. transmission range sideways	12 m
Max. transmission range frontally	12 m
Max. presence range	120 m²
Diameter detection range on floor	360 m
Halogen free	Yes
Sensor type	Passive infrared
Impact strength	IK00
Material quality	Aluminium
Min. starting current	0.5 A
Nominal voltage	240 V
Frequency	50 – 60 Hz
Degree of protection (IP)	IP54
Voltage type	AC

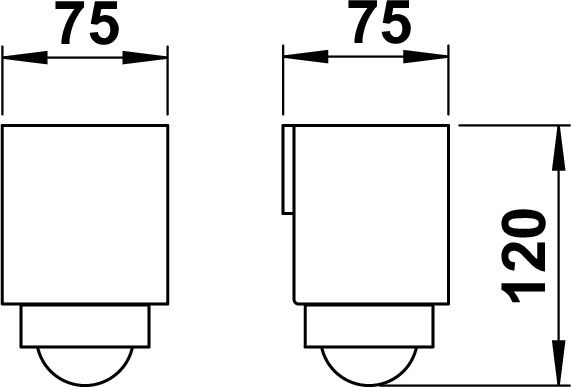

Depth	76 mm
RAL-number (similar)	7016, 9005
Max. duty cycle	5 min
Surface finishing	Matt
Height	120 mm
Width	75 mm
Control current	0.5 mA
Min. switch-on time	20 s
Max. switching power	200 W, 201 W
Number of switching zones	1, 2
Detection angle horizontal	0 – 360 °
Max. starting current	1 A
Switching-on delay	1 s
Surface protection	Lacquered
Pivoting range sensor, horizontal	0 °
Pivoting range sensor, vertical	0 °
Response value luminosity	2 – 150 lx, 3 – 150 lx
Switch-off delay	1 s
Temperature	0 – 25 °C
Suitable for C-load	Yes
Mounting Type	Wand
Max. switching power LED	20 W
Shape	Eckig

Motion detector
