Article number Select a color, please

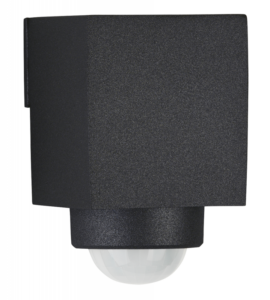

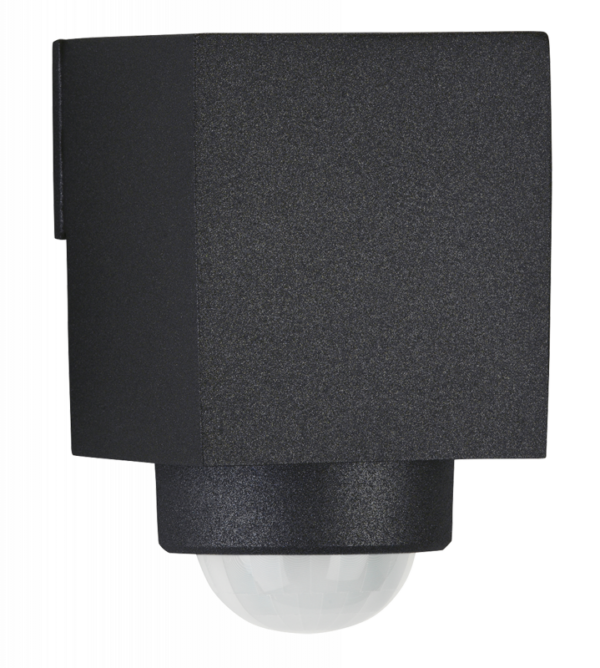

Motion detector

163,70188,40

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Colour
Anthracite, Black
Documents and files
Assembly instruction

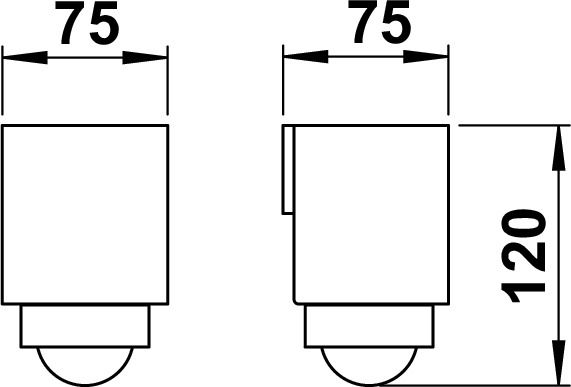

Dimensioned drawing
Instruction manual
Offertext
For: 621030
Offertext
For: 661030
Full catalog 21 / 22

Additional information

Weight N/A
Model

Movement sensor

Material

Metal

Mounting Type

Surface mounted (plaster)

Connection type

Screwed terminal

Suitable for wall mounting

Yes

Response value luminosity adjustable

Yes

Scan angle

360 °

Optimum mounting height

1.8 m

Max. transmission range sideways

12 m

Max. transmission range frontally

12 m

Max. presence range

120 m²

Diameter detection range on floor

360 m

Halogen free

Yes

Sensor type

Passive infrared

Impact strength

IK00

Material quality

Aluminium

Creep-under protection

Yes

Colour

Anthracite, Black

Nominal voltage

240 V

Surface finishing

Matt

Frequency

50 – 60 Hz

Degree of protection (IP)

IP54

Voltage type

AC

Depth

76 mm

RAL-number (similar)

7016, 9005

Max. duty cycle

5 min

Number of switching zones

1, 2

Height

120 mm

Width

75 mm

Control current

0.5 mA

Min. switch-on time

20 s

Max. switching power

200 W, 201 W

Detection angle horizontal

0 – 360 °

Min. starting current

0.5 A

Max. starting current

1 A

Switching-on delay

1 s

Surface protection

Lacquered

Pivoting range sensor, horizontal

0 °

Pivoting range sensor, vertical

0 °

Response value luminosity

2 – 150 lx, 3 – 150 lx

Switch-off delay

1 s

Temperature

0 – 25 °C

Suitable for C-load

Yes

Mounting Type

Wand

Max. switching power LED

20 W

Shape

Eckig
