Article number Select a color, please

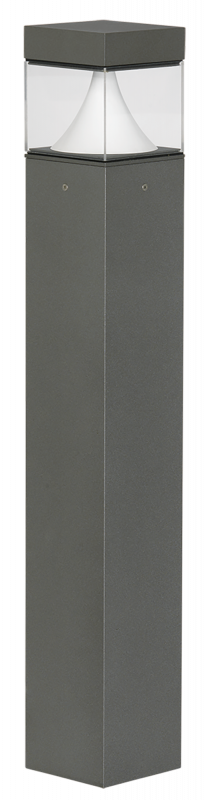

Bollard luminaire, 360 degrees, indirect symmetrical

type no. 623075

623,30716,70

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
22 W
Rated luminous flux according to IEC 62722-2-1
2500 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

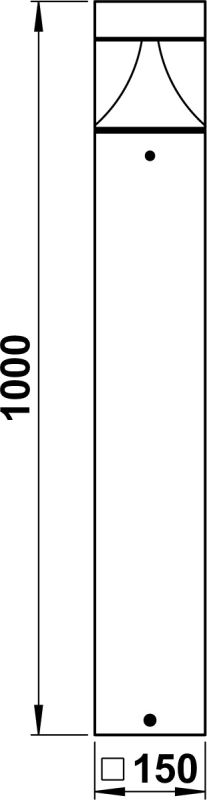

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 623075
Offertext
For: 663075
Full catalog 21 / 22
Spare parts
90270508 - G-508, acrylic -tubes clear show
Accessories
690011 - Earth mounting base type ..0011 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Protection class

I

Max. system power

22 W

With base plate

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Rated life time L70/B50 at 25 °C

50000 h

Degree of protection (IP)

IP54

Type of control gear

Not required

Suitable for lamp power

22 W

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Plastic, transparent

Voltage type

AC

Nominal voltage

230 V

Impact strength

IK08

Shape

Eckig

Light output

Indirect

Length

150 mm

Light sharing

Symmetric

Height/depth

1000 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Connection type

Screwed terminal

Light type

Standleuchte

Rated luminous flux according to IEC 62722-2-1

2500 lm

Beam angle

Open beam/diffuse

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Power factor

0.8

Flickering value Pst LM

0.5

Stroboscope effect value SVM

0.6

Width

150 mm

Height

700 – 1000 mm
