Data sheet

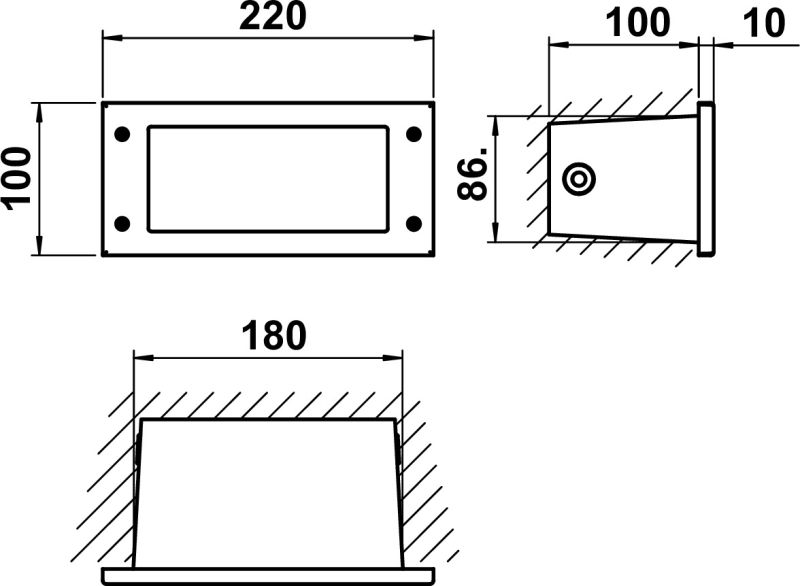

Recessed wall luminaire Stainless steel Dimensioned drawing Article 691906
Recessed wall luminaire Stainless steel Dimensioned drawing Article 691906
Article number 691906

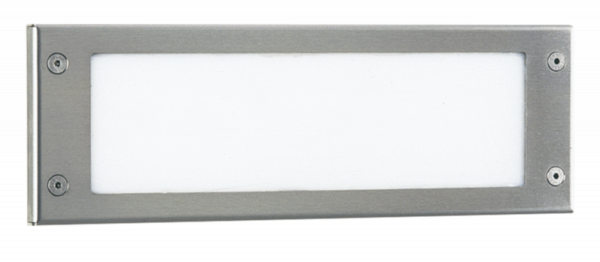

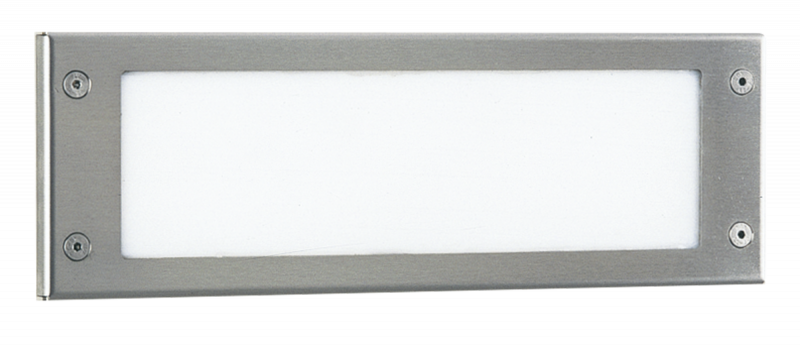

Recessed wall luminaire

type ..1906

This product is no longer in our assortment.

Nicht lieferbar

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert recessed wall luminaire 691906 Housing made of corrosion-resistant cast aluminium, stainless steel cover, with white Makrolon lens. For 1 x fluorescent lamp TC-D 10/13 Watt, lampholder G24d-1, mounting hole 180 x 86 IP 44 – protection class : 220 x 100 x 110 mm.

Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G24d-1
Suitable for lamp power
3 W
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 77.71 KB
Dimensioned drawing
download PDF 21.49 KB
Light distribution curve - Eulumdat/LDT
download LDT 2.96 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90270333 - G 333, Makrolon insert show

Additional information

Weight 1,30 kg
Type of wiring

Ending
Lamp type

Compact fluorescent lamp
Suitable for number of lamps

1
Lamp holder

G24d-1
Material housing

Stainless steel
Colour housing

Stainless steel
Suitable for surface mounting

Yes
Nominal voltage

230 V
With control gear

Yes
Suitable for built-in mounting

Yes
Suitable for lamp power

3 W
Max. system power

3 W
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Light output

Direct
Degree of protection (IP)

IP54
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Material cover

Glass opal
Type of control gear

Low-loss ballast inductive
Voltage type

AC
Power factor

1
Lowest energy efficiency class of the exchangeable lamp

E
Exchangeable control gear

Yes
Dimming depending on control gear

Yes
No dim function

Yes
Width

220 mm
Height/depth

100 mm
Protection class

I
Connection type

Screwed terminal
Mounting Type

Wand
Number of poles

3
Conductor cross section

2.5 mm²
Length

100 mm
Surface protection housing

Untreated
Light output

1-seitig
Highest energy efficiency class of the exchangeable lamp

A++
Suitable for wall mounting

Yes
Photobiological safety according to EN 62471

RG1
Unified Glare Ratio (UGR)

1
Height

< 700 mm
Shape

Eckig
