Article number 691907

Recessed wall luminaire

type ..1907

This product is no longer in our assortment.

Nicht lieferbar

Specifications

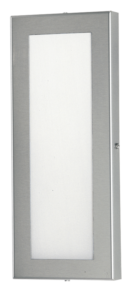

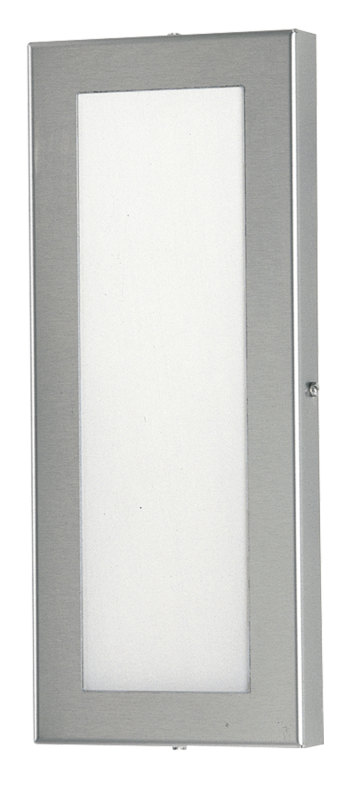

Albert recessed wall light 691907
Housing made of corrosion-resistant cast aluminium, cover made of stainless steel, with white Makrolon lens. Equipped for 1 x fluorescent lamp TC-D 18 Watt, socket G24d-2.installation opening 260 x 86 IP 44 – protection class : 300x 100 x 110 mm

Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G24d-2
Suitable for lamp power
18 W
Material cover
Glass opal
Weight 1,60 kg
Type of wiring

Ending

Suitable for number of lamps

1

Suitable for surface mounting

Yes

Nominal voltage

230 V

With control gear

Yes

Suitable for built-in mounting

Yes

Max. system power

18 W

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Degree of protection (IP)

IP54

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of control gear

Low-loss ballast inductive

Voltage type

AC

Power factor

1

Exchangeable control gear

Yes

Protection class

I

Dimming depending on control gear

Yes

No dim function

Yes

Width

300 mm

Height/depth

100 mm

Length

100 mm

Connection type

Screwed terminal

Mounting Type

Wand

Number of poles

3

Conductor cross section

2.5 mm²

Surface protection housing

Untreated

Lowest energy efficiency class of the exchangeable lamp

E

Light output

1-seitig

Highest energy efficiency class of the exchangeable lamp

A++

Suitable for wall mounting

Yes

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Height

< 700 mm

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 78 KB

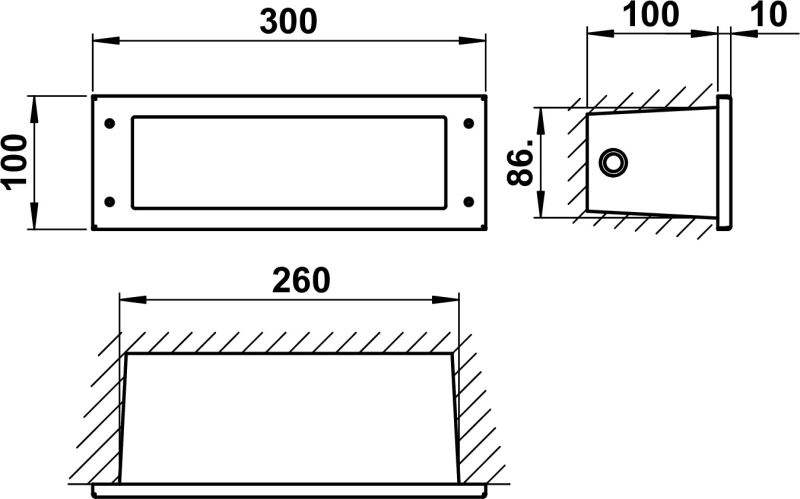

Dimensioned drawing
PDF | 20 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90270332 - G 332, Makrolon insert show
