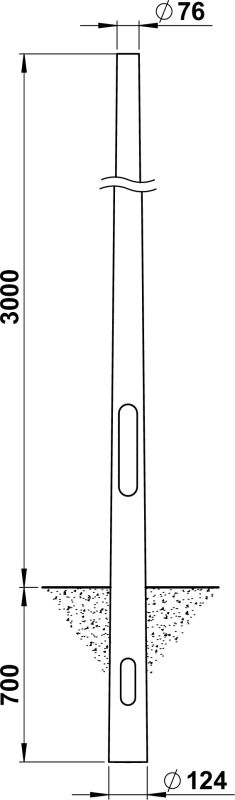

Steel pole, 3000 mm, spigot 76 Other Dimensioned drawing Article 690018
Steel pole, 3000 mm, spigot 76 Other Product Image Article 690018
Steel pole, 3000 mm, spigot 76 Other Dimensioned drawing Article 690018
Article number 690018

Steel pole, 3000 mm, spigot 76

type ..0018

€1.247,40

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert steel pole 690018
hot-dip galvanised and unpainted, conical. For post-top luminaires and 3,000 mm above ground, with ground piece 700 76 Door to accommodate a cable junction box 690036

Top end diameter
76 mm
Documents and files
Dimensioned drawing
download PDF 17.19 KB
Full catalog 21 / 22
download PDF 38.74 MB
Accessories
690036 - KÜK Type No. 690036 show

Additional information

Weight 21,60 kg
Model

Cylindrical
Conical tapering

Yes
Top end diameter

76 mm
Diameter at base

124 mm
Wall thickness

3 mm
Material

Steel
Surface protection

Galvanized
Light centre height

3 m
Total length

3.7 m
With base plate

Yes
Total length

3000 – 3500 mm
Shape

Eckig
