Data sheet
Article number 690064
Steel pole, 7000 mm, spigot 76
type ..0064
€1.854,90
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert steel pole 690064 hot-dip galvanized and unpainted, cylindrical stepped, for pole-top luminaires and 7,000 mm above ground, with ground piece 1,000 76 door to accommodate a cable junction box 690036
Top end diameter
76 mm
Documents and files

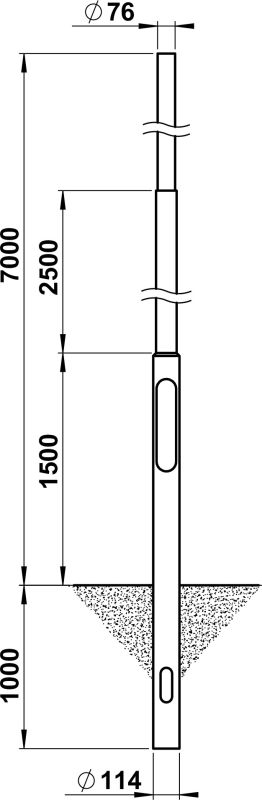

Dimensioned drawing
Full catalog 21 / 22
Accessories
| 690036 - KÜK Type No. 690036 | show |
Additional information
| Weight | 58,00 kg |
|---|---|
| Model | Cylindrical |
| Stepped shape | Yes |
| Top end diameter | 76 mm |
| Diameter at base | 114 mm |
| Wall thickness | 3 mm |
| Material | Steel |
| Surface protection | Galvanized |
| Light centre height | 7 m |
| Total length | 8 m |
| Total length | 6001 – 8000 mm |
| Shape | Eckig |
