Article number Select a color, please

Surface mounted ceiling spotlight

type ..2319

299,20356,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

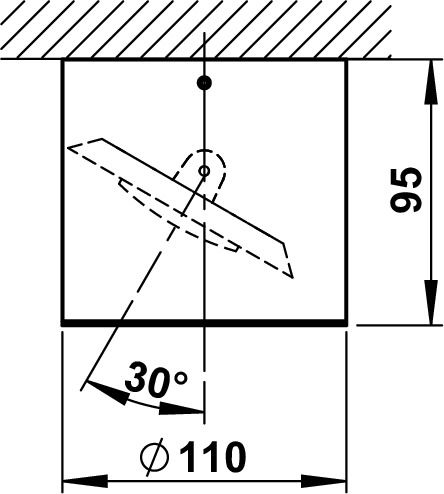

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext

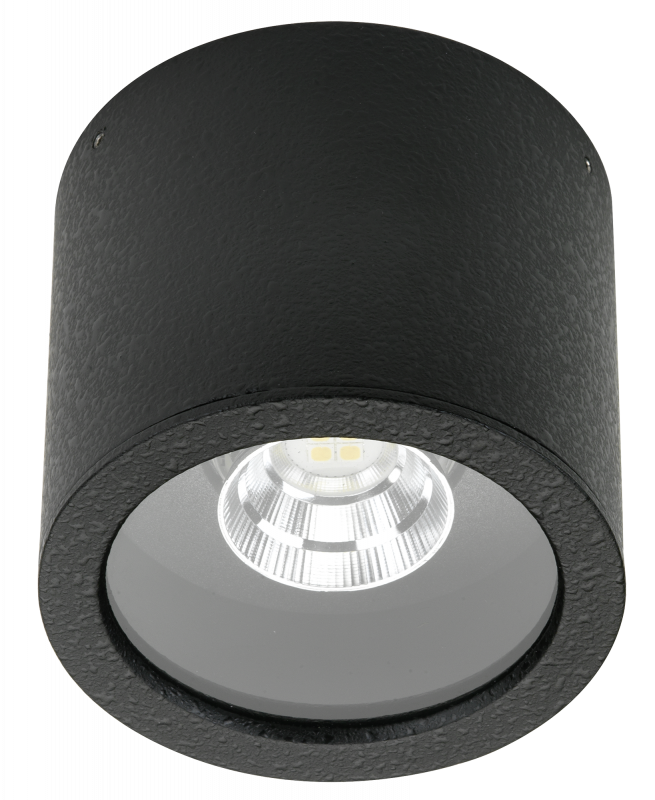

For: 662319
Offertext

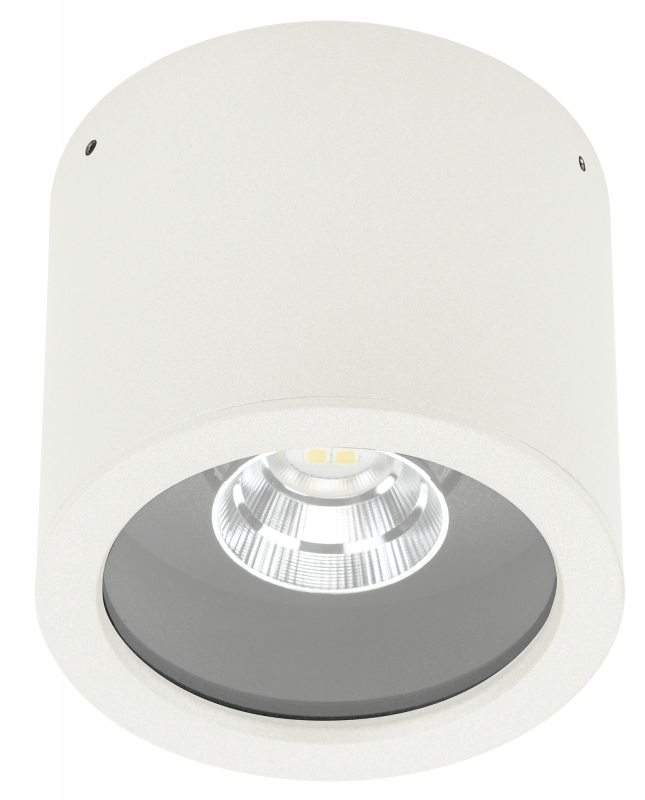

For: 682319
Offertext

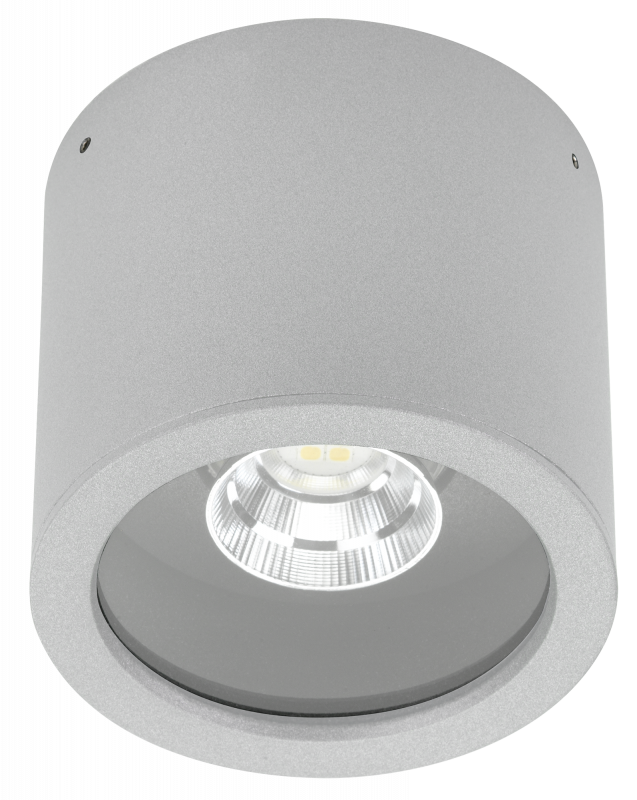

For: 692319
Full catalog 21 / 22
Spare parts
90220111 - G 111, ESG glass show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Light sharing

Symmetric

Suitable for ceiling mounting

Yes

Suitable for pedestal/floor mounting

Yes

Dimming phase cut-off

Yes

Colour housing

Black, Silver, White

Protection class

I

Colour temperature

3000 K

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Outer diameter

110 mm

Surface protection

Lacquered

Rated luminous flux according to IEC 62722-2-1

800 lm

Number of poles

3

Type of control gear

LED operating device voltage-controlled

Luminous flux

800 lm

Nominal voltage

230 V

Lamp type

LED exchangeable

Max. system power

8 W

Voltage type

AC

Material cover

Glass transparent

Adjustability

Not adjustable

With control gear

Yes

Height

< 700 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

8 W

Height/depth

95 mm

Power factor

0.9

Beam angle

Medium beam 21-40°

Colour of light

White

Shape

Eckig

Mounting Type

Decke

Colour rendering index CRI

80-89

Colour consistency (McAdam ellipse)

SDCM3

Light output

Direct

Exchangeable control gear

Yes

Unified Glare Ratio (UGR)

1

Flickering value Pst LM

1

Light output

1-seitig

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Conductor cross section

2.5 mm²

Type of wiring

Ending

Energy efficiency class of the provided exchangeable built-in lamp

E

Connectable conductor cross section

0.75 – 2.5 mm²

No dim function

Yes

Degree of protection (IP)

IP44

Connection type

Screwed terminal
