Article number Select a color, please

Wall and ceiling light

type ..6262

245,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

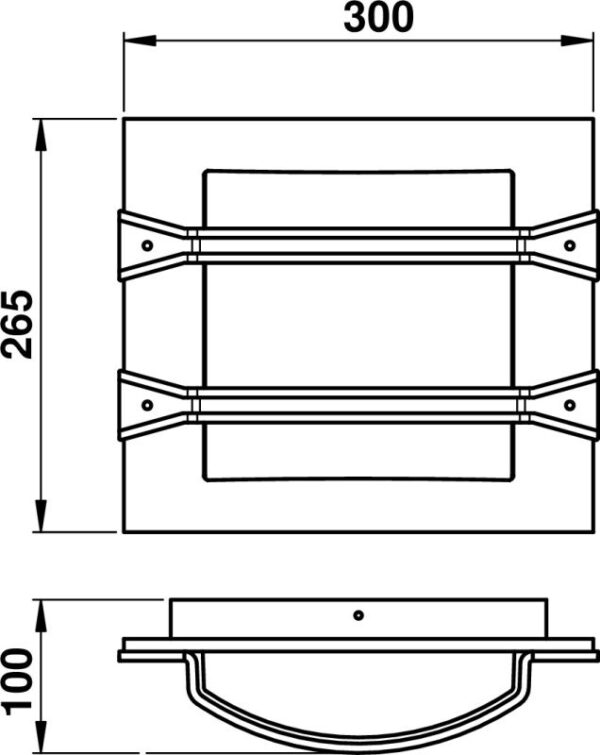

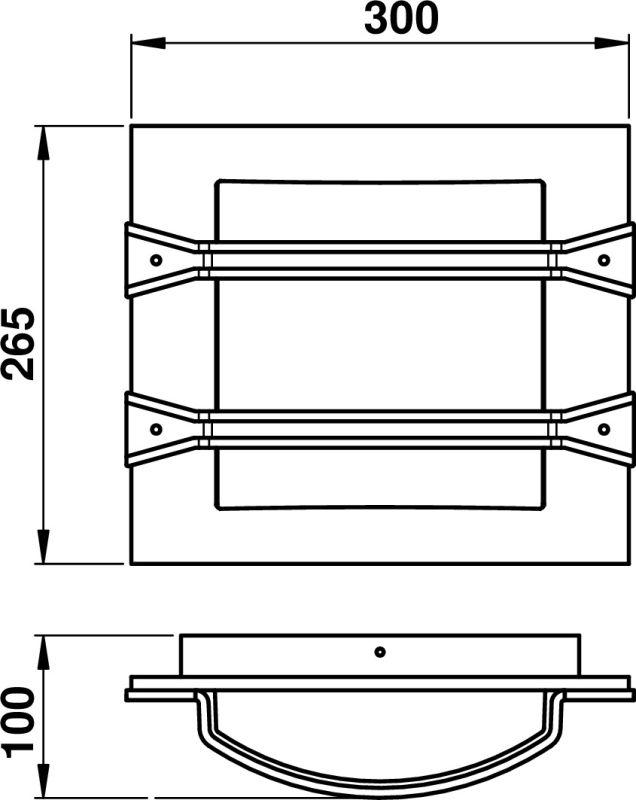

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 606262
Offertext
For: 656262
Offertext
For: 676262
Full catalog 21 / 22
Spare parts
90210348 - G 348, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for number of lamps

1

Suitable for ceiling mounting

Yes

Length

100 mm

Type of control gear

Not required

Material housing

Aluminium

Nominal voltage

230 V

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Material cover

Glass opal

Dimming phase cut-off

Yes

Dimming depending on control gear

Yes

No dim function

Yes

Dimming phase cut-on

Yes

Colour housing

Black-Silver, Brown-Brass, White-Gold

Lamp holder

E27

Beam angle

Open beam/diffuse

Conductor cross section

2.5 mm²

Type of wiring

Ending

Mounting Type

Decke, Wand

Protection class

I

Degree of protection (IP)

IP44

Voltage type

AC

Lowest energy efficiency class of the exchangeable lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Highest energy efficiency class of the exchangeable lamp

A++

Light output

Direct

Number of poles

3

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Power factor

1

Width

300 mm

Height/depth

265 mm

Connection type

Screwed terminal

Photobiological safety according to EN 62471

RG1

Light sharing

Symmetric

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Unified Glare Ratio (UGR)

1

Style

Landhaus

Shape

Eckig
