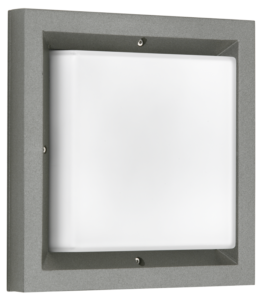

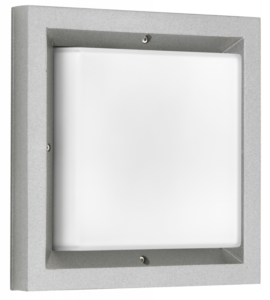

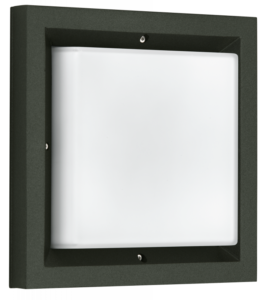

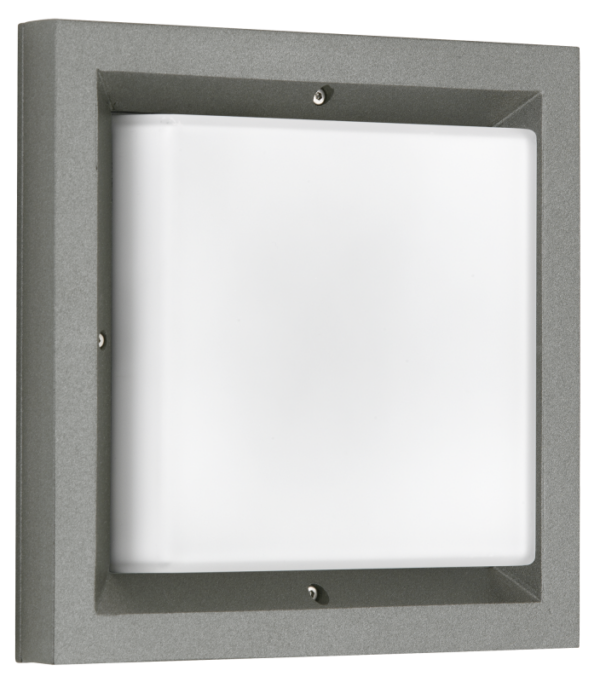

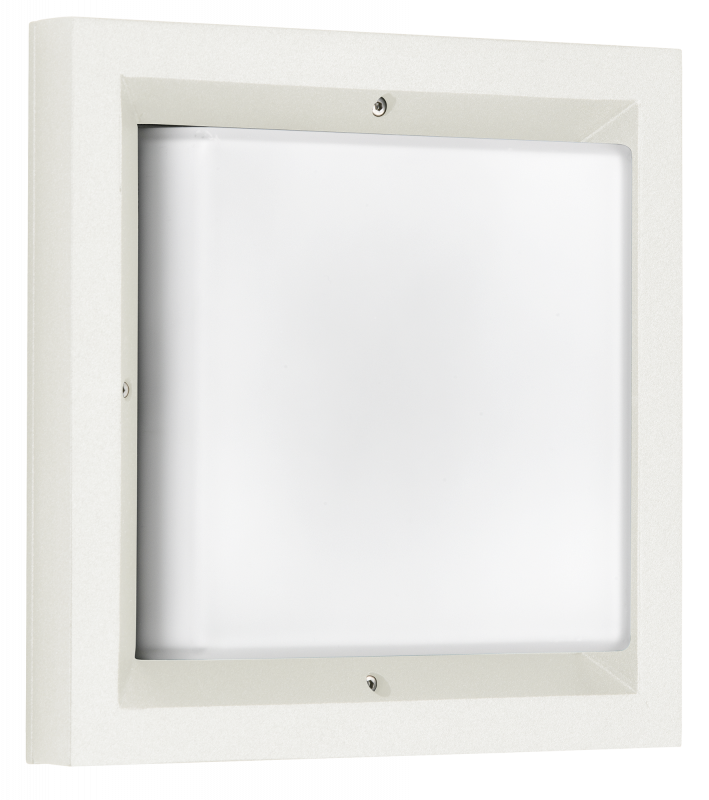

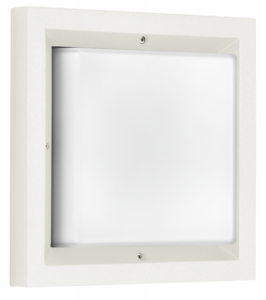

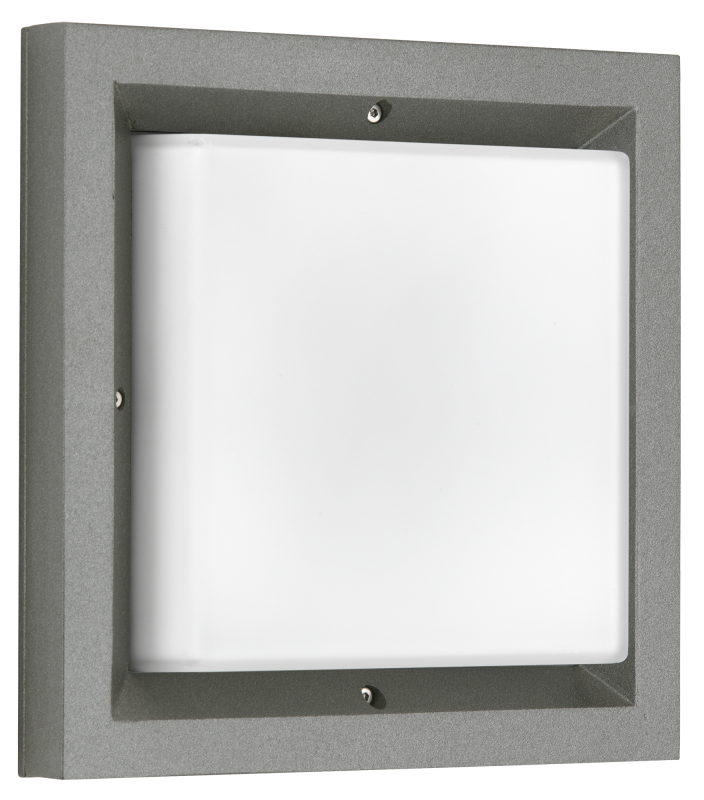

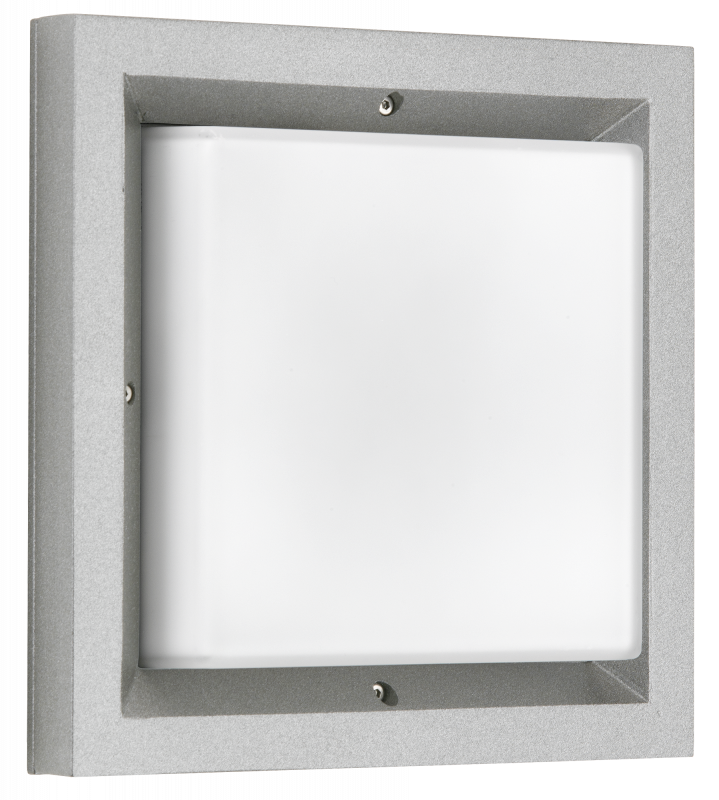

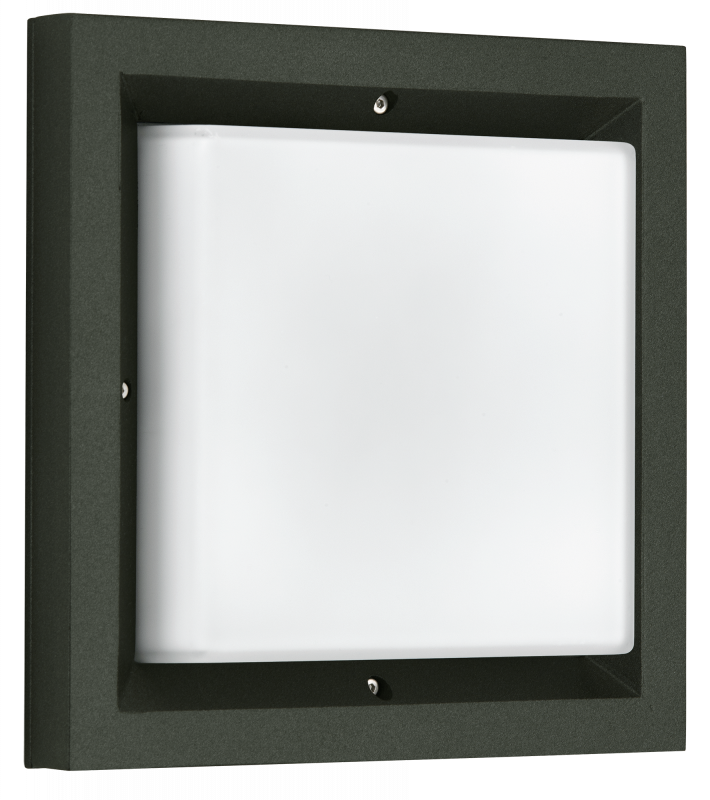

Wall and ceiling light

type ..6411

There is a successor for this product, which you will find listed below.

294,20338,30

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
880 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

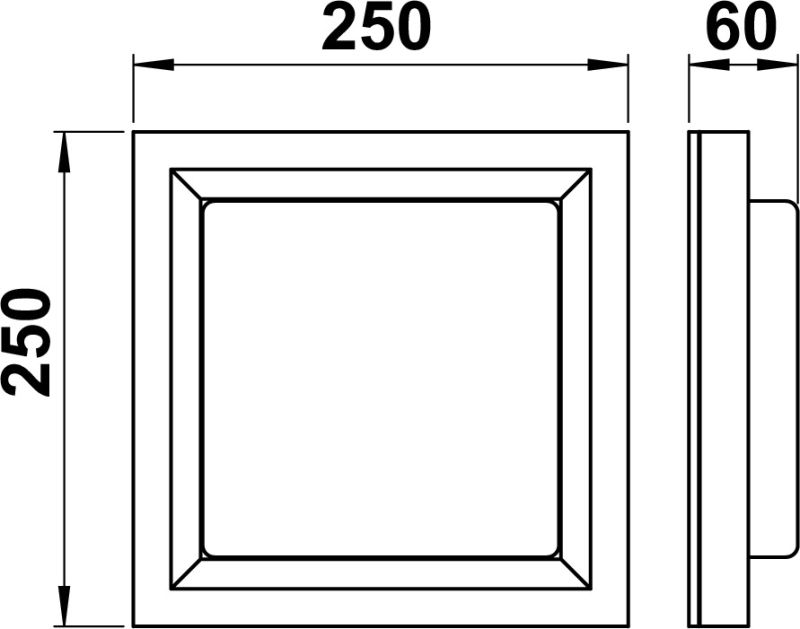

Dimensioned drawing
Offertext
For: 626411
Offertext
For: 666411
Offertext
For: 686411
Offertext
For: 696411
Full catalog 21 / 22
Successor
626422 - Wall and ceiling light type ..6422, Anthracite
Für: 626411
show
666422 - Wall and ceiling light type ..6422, Black
Für: 666411
show
686422 - Wall and ceiling light type ..6422, White
Für: 686411
show
696422 - Wall and ceiling light type ..6422, Silver
Für: 696411
show
Spare parts
90210126 - G 126, clear glass matt show

Additional information

Weight N/A
Suitable for lamp power

8 W

Dimming phase cut-off

Yes

Suitable for surface mounting

Yes

Material cover

Glass opal

Lamp type

LED exchangeable

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Suitable for number of lamps

1

With control gear

Yes

Suitable for ceiling mounting

Yes

With light source

Yes

Colour temperature

3000 K

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Colour housing

Anthracite, Black, Silver, White

Voltage type

AC

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

No dim function

Yes

Light output

Direct

Material housing

Aluminium

Suitable for wall mounting

Yes

Rated luminous flux according to IEC 62722-2-1

880 lm

Colour of light

White

Colour consistency (McAdam ellipse)

SDCM3

Protection class

I

Energy efficiency class of the provided exchangeable built-in lamp

E

Length

60 mm

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Height

< 700 mm

Surface protection housing

Lacquered

Exchangeable control gear

Yes

Degree of protection (IP)

IP54

Connection type

Screwed terminal

Colour rendering index CRI

80-89

Power factor

0.9

Photobiological safety according to EN 62471

RG1

Height/depth

250 mm

Light output

1-seitig

Max. system power

8 W

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Unified Glare Ratio (UGR)

1

Width

250 mm

Mounting Type

Decke, Wand

Shape

Eckig
