Article number Select a color, please

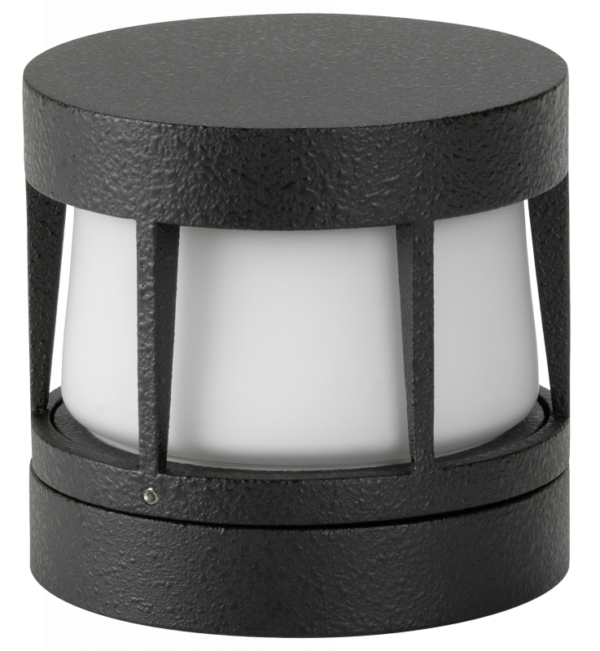

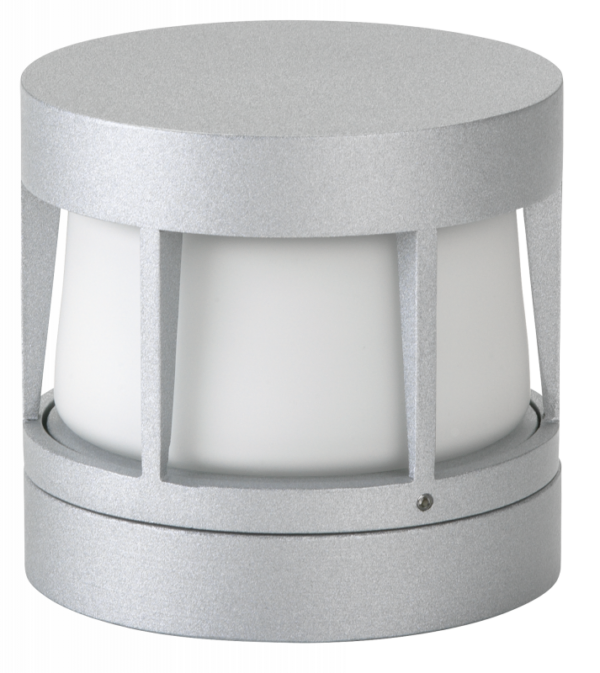

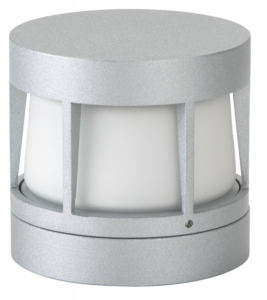

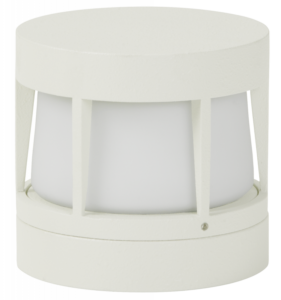

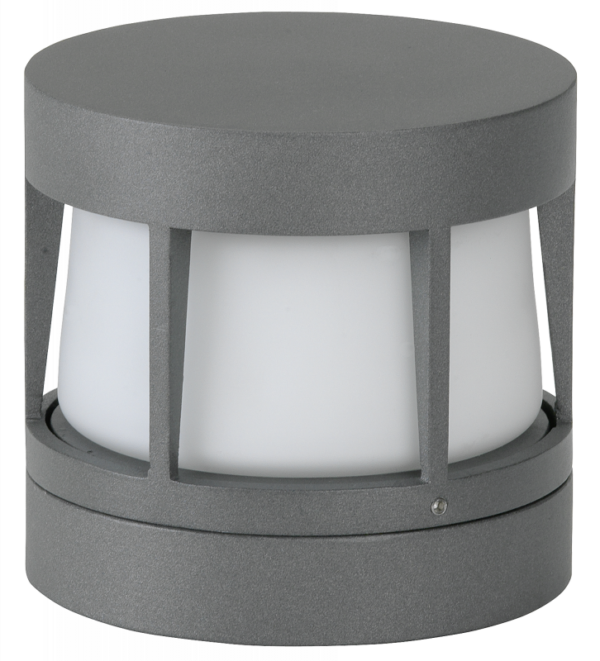

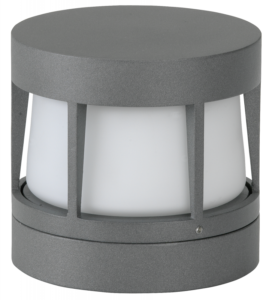

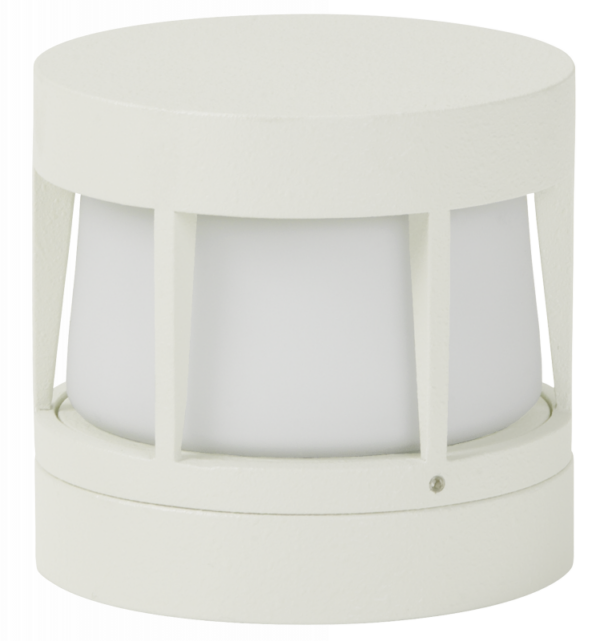

Wall, ceiling and pillar luminaire

type ..0326

260,80300,20

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux acc. IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve
Offertext
For: 620326
Offertext
For: 660326
Offertext
For: 680326
Offertext
For: 690326
Full catalog 21 / 22
Spare parts
90210391 - G 391, glass opal matt show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass opal

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Dimming phase cut-off

Yes

Control gear included

No, Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Colour rendering index CRI

80-89

Max. system power

10 W

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

A+

Degree of protection (IP)

IP54

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Rated luminous flux acc. IEC 62722-2-1

900 lm

Suitable for lamp power

10 W

Dimming depending on control gear

Yes

Colour of light

White

Power factor

0.9

Colour temperature

3000 K

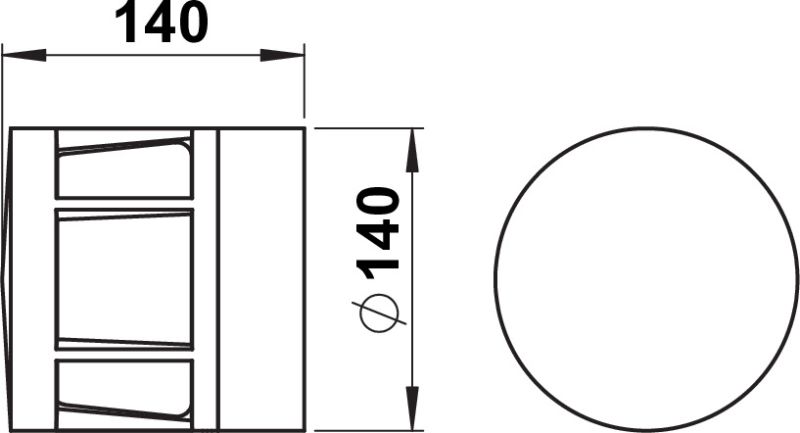

Length

140 mm

Outer diameter

140 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Shape

Eckig

Mounting Type

Decke, Wand

Light output

1-seitig

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Style

Modern
