Data sheet
Article number 696109
Wall lamp
type ..6109
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert wall lamp 696109
in stainless steel with opal glass, mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27, protection IP 44 – protection class : 180 x 280 x 90 mm.
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

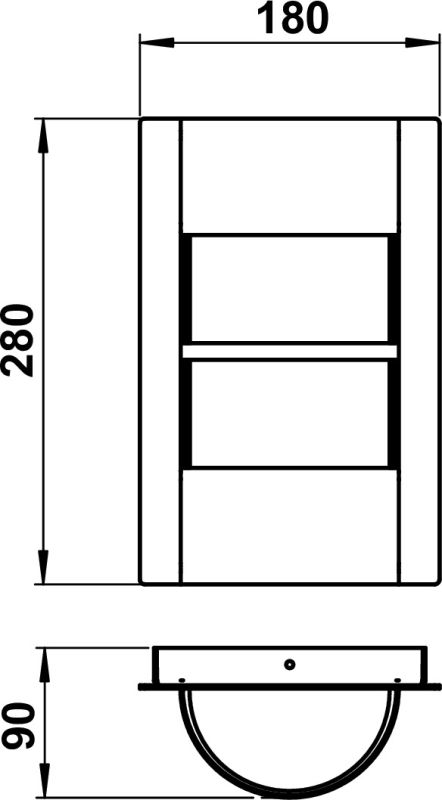

Dimensioned drawing
Full catalog 21 / 22
Spare parts
| 90210107 - G 107, opal glass | show |
Additional information
| Weight | 2,40 kg |
|---|---|
| Suitable for wall mounting | Yes |
| Suitable for surface mounting | Yes |
| Protection class | I |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Conductor cross section | 2.5 mm² |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Voltage type | AC |
| Material cover | Glass opal |
| Colour housing | Stainless steel |
| Material housing | Stainless steel |
| Power factor | 1 |
| Width | 180 mm |
| Height/depth | 280 mm |
| Length | 90 mm |
| Type of wiring | Ending |
| Number of poles | 3 |
| Dimming manufacturer's proprietary system | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Light output | 1-seitig |
| Photobiological safety according to EN 62471 | RG1 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| No dim function | Yes |
| Max. system power | 75 W |
| Connection type | Screwed terminal |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Light sharing | Symmetric |
| Dimming depending on control gear | Yes |
| Suitable for lamp power | 1 – 75 W |
| Light output | Direct |
| Height | < 700 mm |
| Surface protection housing | Untreated |
| Beam angle | Open beam/diffuse |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Shape | Eckig |
