Data sheet
Article number Select a color, please

Wall lamp

type ..6368

€432,10 – €447,70

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
15.6 W
Rated luminous flux according to IEC 62722-2-1
1160 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes
Power factor

0.9
Suitable for number of lamps

2
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Energy efficiency class of the provided exchangeable built-in lamp

E
No dim function

Yes
Degree of protection (IP)

IP44
Colour of light

White
Voltage type

AC/DC
Suitable for surface mounting

Yes
With control gear

Yes
Nominal voltage

230 V
Colour rendering index CRI

80-89
Height/depth

100 mm
Light sharing

Symmetric
Type of control gear

LED operating device voltage-controlled
Protection class

I
Max. number of luminaires per miniature circuit breaker B16

20
Colour consistency (McAdam ellipse)

SDCM3
Flickering value Pst LM

1
Number of poles

3
Conductor cross section

2.5 mm²
Light output

Direct
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Max. system power

15.6 W
Beam angle

Open beam/diffuse
Dimming depending on control gear

Yes
Shape

Eckig
Mounting Type

Wand
Light type

Wandleuchte
Light output

1-seitig
Type of wiring

Ending
Max. number of luminaires per miniature circuit breaker C16

30
Surface protection housing

Lacquered
Exchangeable control gear

Yes
Photobiological safety according to EN 62471

RG1
Style

Modern

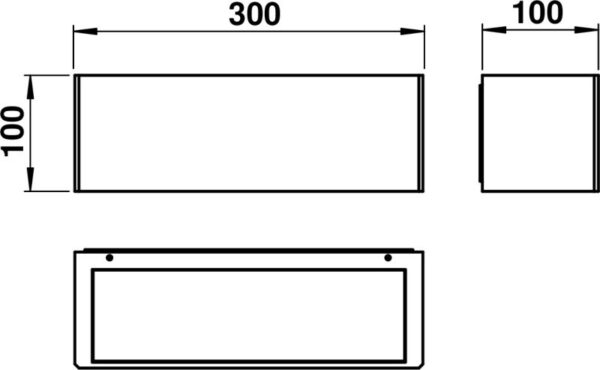

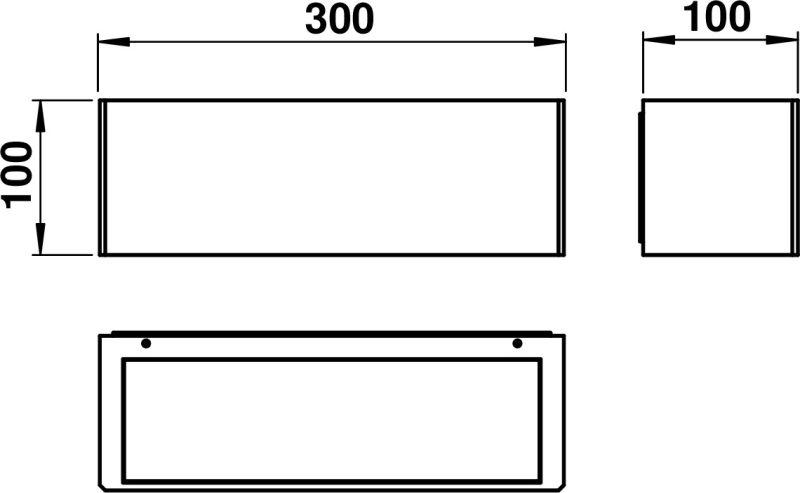

Length

100 mm
Connection type

Screwed terminal
Width

300 mm
Stroboscope effect value SVM

0.4
Height

< 700 mm
Unified Glare Ratio (UGR)

1
Spare parts
90220378 - G 378, frosted flashed glass ESG show
