Data sheet

Article number 692445

Wall floodlight

Name: Wall floodlight type ..2445
SKU: 692445
Availability: InStock

type ..2445

€495,80

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer

Specifications

Wall floodlight type no. 2445
Stainless steel, light emission narrow/wide, with 2 x LED 16 W, 1600 lm each, 3000 K, with integrated converter AC/DC safety glass clear,

Features

Luminaire can be operated with 230 V, 0/50-60 Hz.

Luminaire has IP 44 protection.

Luminaire is equipped with LED components.

LED components can be replaced.

Luminaire has a 2-sided light emission (top/bottom).

Material housing

Stainless steel

Colour housing

Stainless steel

Lamp type

LED exchangeable

With light source

Yes

Suitable for lamp power

16 W

Rated luminous flux according to IEC 62722-2-1

3200 lm

Colour temperature

3000 K

Material cover

Glass transparent

Weight	2,90 kg
Light outlet	2-seitig
Height	< 700 mm
Stroboscope effect value SVM	0.4
Beam angle adjustable	Continuously variable
Flickering value Pst LM	1
Power factor	0.9
Colour consistency (McAdam ellipse)	SDCM3
Unified Glare Ratio (UGR)	1
Connection type	Screwed terminal
Adjustability	Not adjustable
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Protection class	I
Degree of protection (IP)	IP44
Energy efficiency class of the provided exchangeable built-in lamp	E
Max. number of luminaires per miniature circuit breaker B16	20
Beam angle	Medium beam 21-40°
Shape	Eckig
Light outlet	Direct/indirect
Max. number of luminaires per miniature circuit breaker C16	30
Suitable for surface mounting	Yes
Luminous flux	3200 lm
Conductor cross section	2.5 mm²
Number of poles	3
Type of wiring	Ending
Width	140 mm
Connectable conductor cross section	0.75 – 2.5 mm²
Light sharing	Symmetric
Light distributor	Focal lens
Height/depth	150 mm
Length	155 mm
Colour of light	White
Max. system power	32 W
Surface brushed	Yes
Suitable for number of lamps	2
Suitable for pedestal/floor mounting	Yes
Suitable for wall mounting	Yes
Exchangeable control gear	Yes
Type of control gear	LED operating device voltage-controlled
Voltage type	AC/DC
No dim function	Yes
Colour rendering index CRI	80-89
Nominal voltage	230 V
With control gear	Yes
Dimming phase cut-off	Yes
Style	Landhaus

Documents and files

Assembly instruction

PDF | 81.57 KB

download

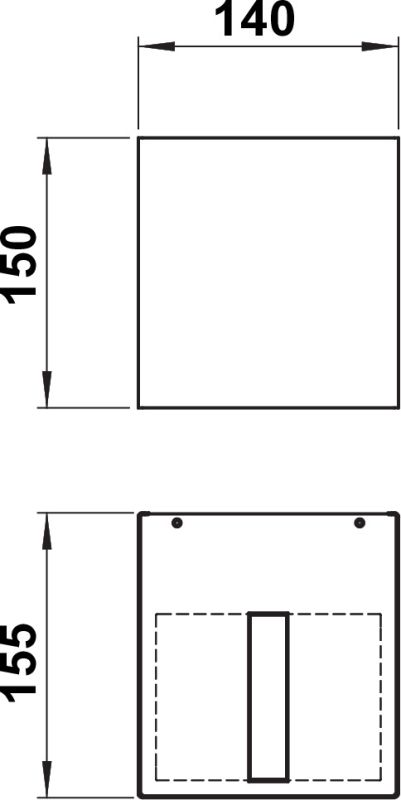

Dimensioned drawing

PDF | 222.33 KB

download

Light distribution curve - Eulumdat/LDT

LDT | 13.25 KB

download

Full catalog 21 / 22

PDF | 38.74 MB

download

Spare parts

90220337 - G 337, prism glass, borosilicate	show
90220437 - G 437, toughened safety glass	show
