Data sheet
Article number 692452
Wall floodlight
type ..2452
€461,70
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Wall floodlight type no. 2452
Stainless steel, light emission wide, with 1 x LED 16 W, 1600 lm, 3000 K, with integrated converter AC/DC safety glass clear,
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass transparent
Spare parts
| 90220437 - G 437, toughened safety glass | show |
Additional information
| Weight | 2,80 kg |
|---|---|
| Voltage type | AC/DC |
| Suitable for wall mounting | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Lamp type | LED exchangeable |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Stainless steel |
| Colour housing | Stainless steel |
| Material cover | Glass transparent |
| Surface brushed | Yes |
| Colour rendering index CRI | 80-89 |
| Exchangeable control gear | Yes |
| Dimming phase cut-off | Yes |
| With control gear | Yes |
| Nominal voltage | 230 V |
| No dim function | Yes |

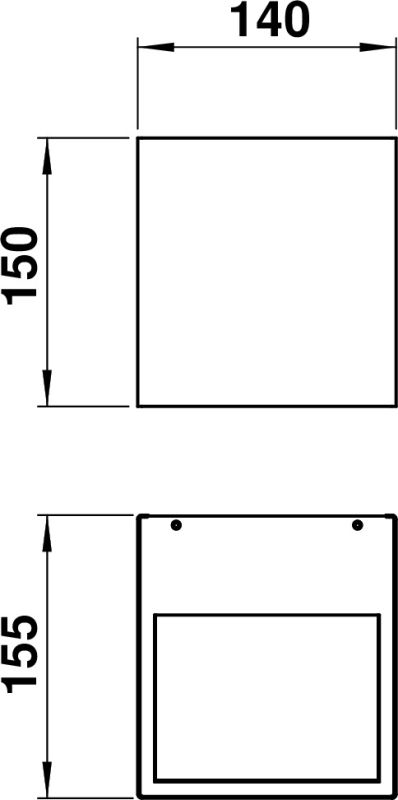

| Height/depth | 150 mm |
| Length | 155 mm |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP44 |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for lamp power | 16 W |
| Adjustability | Not adjustable |
| Connection type | Screwed terminal |
| Colour of light | White |
| Colour temperature | 3000 K |
| Rated luminous flux according to IEC 62722-2-1 | 1600 lm |
| Power factor | 0.9 |
| Flickering value Pst LM | 1 |
| Beam angle adjustable | Continuously variable |
| Stroboscope effect value SVM | 0.4 |
| Light sharing | Symmetric |
| Max. system power | 16 W |
| Light output | Direct |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Beam angle | Medium beam 21-40° |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Luminous flux | 1600 lm |
| Suitable for surface mounting | Yes |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Type of wiring | Ending |
| Width | 140 mm |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Unified Glare Ratio (UGR) | 1 |
| Height | < 700 mm |
| Light output | 1-seitig |
| Shape | Angular, Eckig |
