Data sheet
Article number
Select a color, please
Bollard light
type ..2087
€582,30 – €683,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire cover is impact resistant IK 10.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

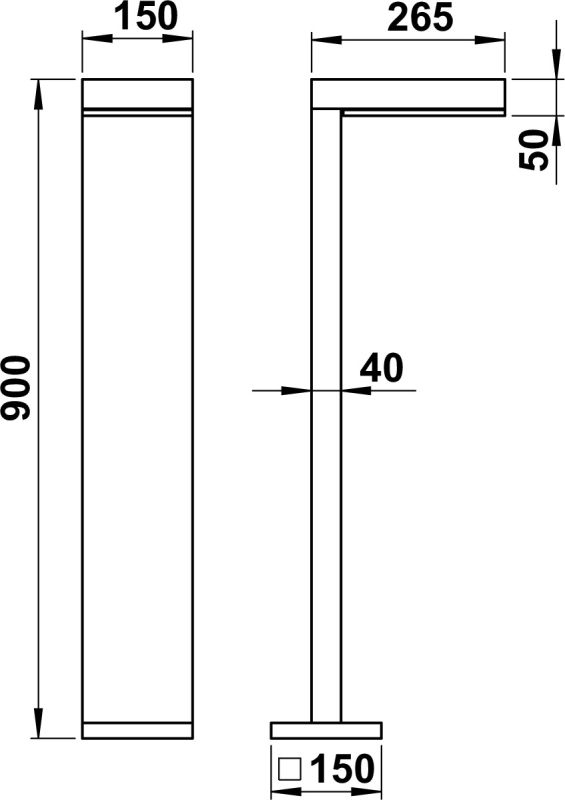

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622087
Offertext
For: 662087
Offertext
For: 682087
Offertext
For: 692087
Full catalog 21 / 22
For: 622087, 662087
Additional information
| Weight | N/A |
|---|---|
| Type of wiring | Suitable for through wiring |
| Surface protection | Lacquered |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Colour housing | Anthracite, Black, Silver, White |
| Voltage type | AC |
| Colour temperature | 3000 K |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device current-controlled |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Power factor | 0.9 |
| With control gear | Yes |
| Material cover | Plastic, opal |
| Impact strength | IK10 |
| Protection class | I |
| Suitable for lamp power | 16 W |
| Max. system power | 16 W |
| Rated luminous flux according to IEC 62722-2-1 | 1600 lm |
| Colour of light | White |
| Degree of protection (IP) | IP65 |
| Lamp type | LED exchangeable |
| With light source | Yes |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Colour rendering index CRI | 80-89 |
| Beam angle | Open beam/diffuse |
| Stroboscope effect value SVM | 0.4 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Light type | Standleuchte |
| Height/depth | 900 mm |
| Height | 700 – 1000 mm |
| Exchangeable control gear | Yes |
| With base plate | Yes |
| Type of luminaire | Bollard luminaire |
| Length | 265 mm |
| Flickering value Pst LM | 1 |
| Number of poles | 3 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Width | 150 mm |
| Light sharing | Symmetric |
| Light output | Indirect |
| Shape | Eckig |
