Data sheet
Article number 690010
Earth mounting base
type ..0010
€90,70
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

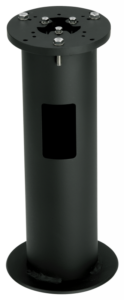

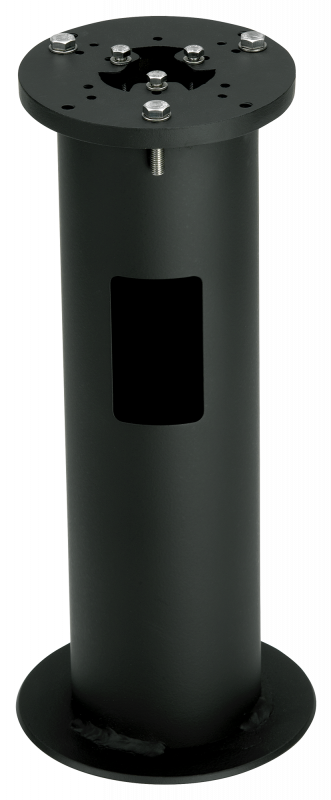

Albert earth installation base 690010
made of cast aluminium and aluminium profile. Length 400 mm with base plate as well as lateral cable entry opening approx. 100 mm below floor. With three stainless steel fixing screws M6 and M8 each for connection to the mounting plate. Colour: black
Colour
Black
Documents and files
Assembly instruction

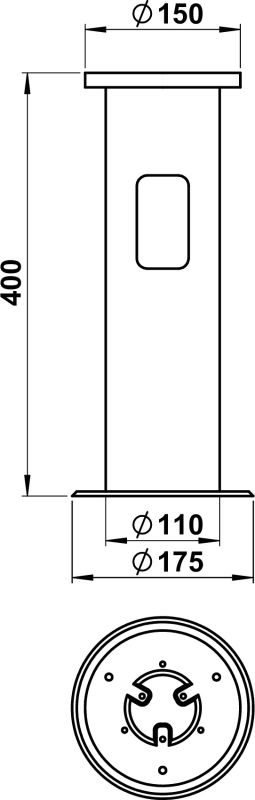

Dimensioned drawing
Full catalog 21 / 22
Additional information
| Weight | 1,60 kg |
|---|---|
| Type of accessory/spare part | Mounting plate |
| Colour | Black |
| Material | Aluminium |
| Height | 400 mm |
| Diameter | 150 mm |
| Accessory | Yes |
| Shape | Eckig |
