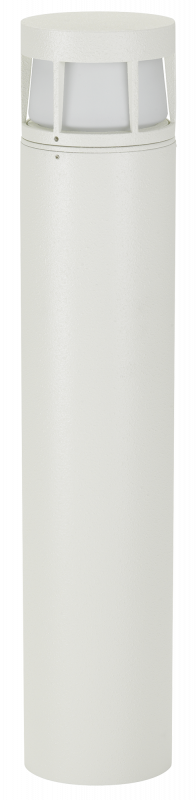

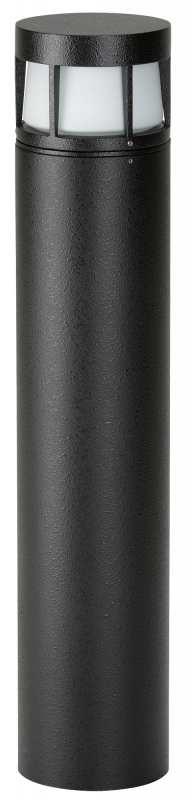

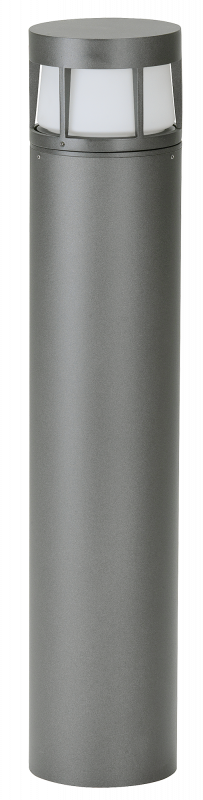

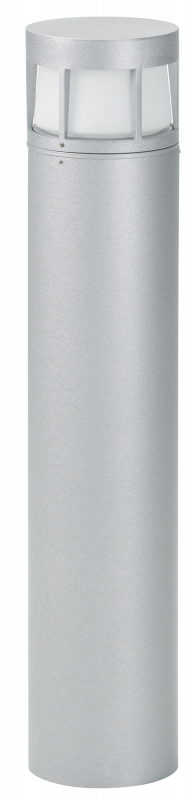

Bollard light

type ..2232

321,90370,10

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622232
Offertext
For: 662232
Offertext
For: 682232
Offertext
For: 692232
Full catalog 21 / 22
Spare parts
90210391 - G 391, glass opal matt show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Number of poles

3

Suitable for number of lamps

1

Material housing

Aluminium

Energy efficiency class of the provided exchangeable built-in lamp

E

Colour housing

Anthracite, Black, Silver, White

Colour temperature

3000 K

Voltage type

AC

Nominal voltage

230 V

With control gear

Yes

Type of control gear

LED operating device voltage-controlled

Surface protection

Lacquered

Highest energy efficiency class of the exchangeable lamp

A+

Type of wiring

Suitable for through wiring

Lamp type

LED exchangeable

With light source

Yes

Colour rendering index CRI

80-89

Height/depth

700 mm

Connection type

Screwed terminal

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP54

Power factor

0.9

Diameter

140 mm

With base plate

Yes

Conductor cross section

2.5 mm²

Material cover

Glass opal

Protection class

I

Shape

Eckig

Light type

Standleuchte

Height

< 700 mm, 700 – 1000 mm

Suitable for lamp power

10 W

Max. system power

10 W

Rated luminous flux according to IEC 62722-2-1

900 lm

Colour of light

White

Style

Modern

Exchangeable control gear

Yes

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Light output

2-seitig
