Article number Select a color, please

Path light

type ..2029

489,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing

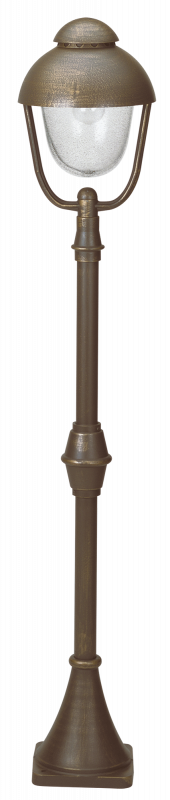

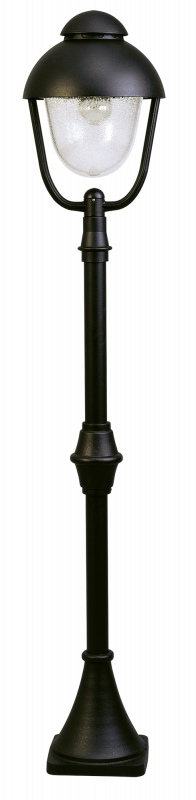

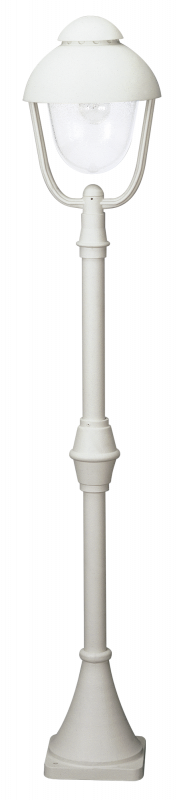

Black, Brown-Brass, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Weight N/A
Power factor

1

Connection type

Screwed terminal

Highest energy efficiency class of the exchangeable lamp

A++

Type of control gear

Not required

Conductor cross section

2.5 mm²

Nominal voltage

230 V

Light sharing

Symmetric

Surface protection

Lacquered

Number of poles

3

Suitable for number of lamps

1

Voltage type

AC

Diameter

250 mm

Height

1001 – 1700 mm

Type of luminaire

Bollard luminaire

Lowest energy efficiency class of the exchangeable lamp

E

Type of wiring

Suitable for through wiring

Light output

Direct/indirect

Max. system power

75 W

Style

Landhaus

Degree of protection (IP)

IP44

Height/depth

1350 mm

Light output

2-seitig

Beam angle

Open beam/diffuse

With base plate

Yes

Protection class

I

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 36 KB

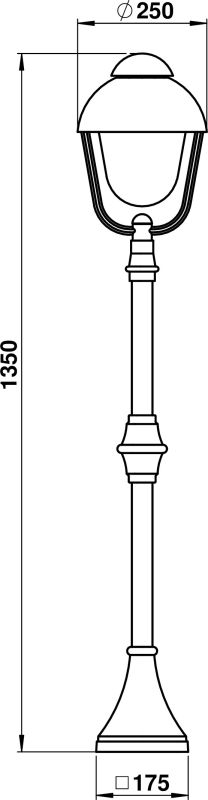

Dimensioned drawing
PDF | 23 KB
Light distribution curve - Eulumdat/LDT
LDT | 836 B
Offertext
For: 652029
TXT | 264 B
Offertext
For: 662029
TXT | 280 B
Offertext
For: 682029
TXT | 280 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210145 - G 145, bubble glass, crystal clear show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
