Article number Select a color, please

Base luminaire

type ..0515

346,90

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Documents and files
Assembly instruction

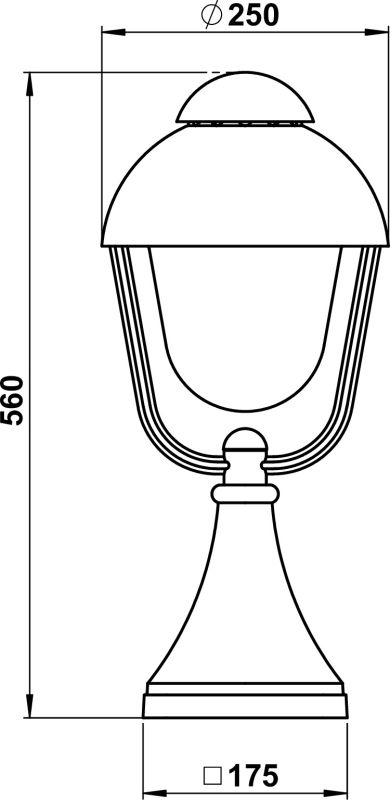

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 650515
Offertext
For: 660515
Offertext
For: 680515
Full catalog 21 / 22
Spare parts
90210145 - G 145, bubble glass, crystal clear show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

Type of control gear

Not required

Highest energy efficiency class of the exchangeable lamp

A++

Suitable for number of lamps

1

Lamp type

HV halogen lamp, Incandescent lamp

Material housing

Aluminium

Diameter

250 mm

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Number of poles

3

Nominal voltage

230 V

With base plate

Yes

Voltage type

AC

Material cover

Glass transparent

Colour housing

Black, Brown-Brass, White

Surface protection

Lacquered

Lamp holder

E27

Type of wiring

Suitable for through wiring

Lowest energy efficiency class of the exchangeable lamp

E

Light sharing

Symmetric

Light output

2-seitig

Style

Landhaus

Beam angle

Open beam/diffuse

Max. system power

75 W

Power factor

1

Height/depth

560 mm

Light output

Direct/indirect

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Height

< 700 mm

Shape

Eckig
