Article number Select a color, please

Path light

type ..4150

259,80

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Type of luminaire

Bollard luminaire

Type of wiring

Suitable for through wiring

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

With base plate

Yes

Length

320 mm

Number of poles

3

Lowest energy efficiency class of the exchangeable lamp

E

Highest energy efficiency class of the exchangeable lamp

A++

Power factor

1

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Suitable for number of lamps

1

Width

260 mm

Light output

Direct/indirect

Max. system power

75 W

Protection class

I

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Surface protection

Lacquered

Light sharing

Symmetric

Height/depth

900 mm

Beam angle

Open beam/diffuse

Light output

2-seitig

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 37 KB

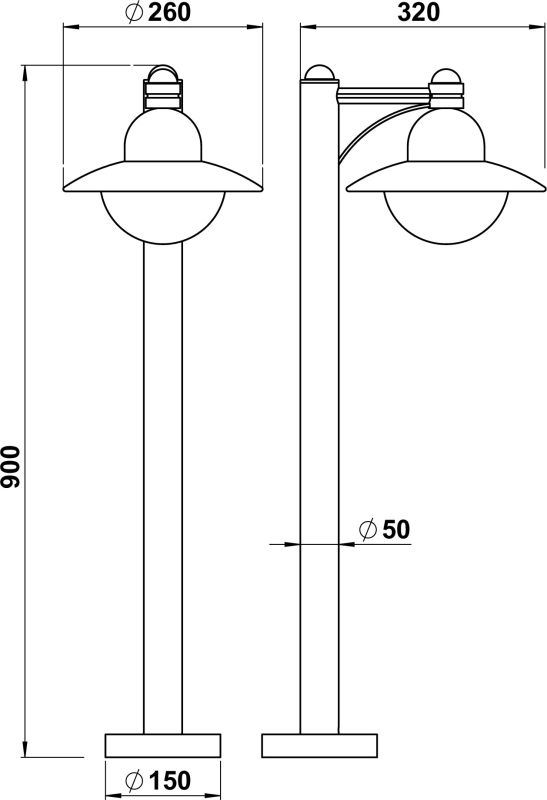

Dimensioned drawing
PDF | 108 KB
Light distribution curve - Eulumdat/LDT
LDT | 1018 B
Offertext
For: 654150
TXT | 92 B
Offertext
For: 664150
TXT | 92 B
Offertext
For: 684150
TXT | 92 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210094 - G 94, glass opal matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
