Data sheet
Article number
Select a color, please
Pole light 3-light
type ..2052
€878,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

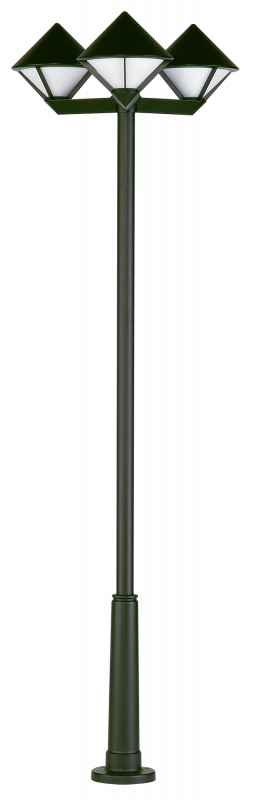

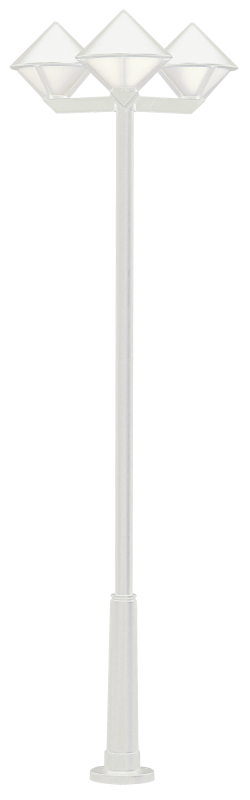

Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W
Material cover
Glass opal
Pole included
Ja
| Weight | N/A |
|---|---|
| Mounting method | Post top |
| No dim function | Yes |
| Power factor | 1 |

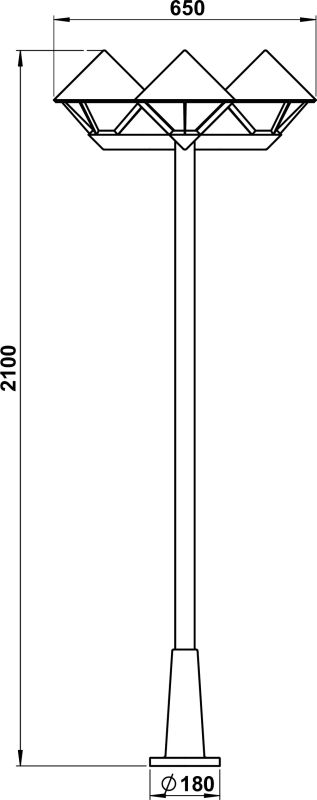

| Height/depth | 2100 mm |
| Cable length | 0 m |
| Connection type | Screwed terminal |
| Light type | Standleuchte |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Diameter | 650 mm |
| Style | Edelstahl, Modern |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. system power | 225 W |
| Protection class | I |
| Type of wiring | Suitable for through wiring |
| Type of control gear | Not required |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 3 |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Degree of protection (IP) | IP44 |
| Surface protection | Lacquered |
| Height | > 1700 mm |
| Dimming phase cut-on | Yes |
| Shape | Eckig |
Documents and files
Additional information
| Weight | N/A |
|---|---|
| Mounting method | Post top |
| No dim function | Yes |
| Power factor | 1 |
| Height/depth | 2100 mm |
| Cable length | 0 m |
| Connection type | Screwed terminal |
| Light type | Standleuchte |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Diameter | 650 mm |
| Style | Edelstahl, Modern |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. system power | 225 W |
| Protection class | I |
| Type of wiring | Suitable for through wiring |
| Type of control gear | Not required |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 3 |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Degree of protection (IP) | IP44 |
| Surface protection | Lacquered |
| Height | > 1700 mm |
| Dimming phase cut-on | Yes |
| Shape | Eckig |
