Article number Select a color, please

Wall lamp

type ..6106

127,80

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

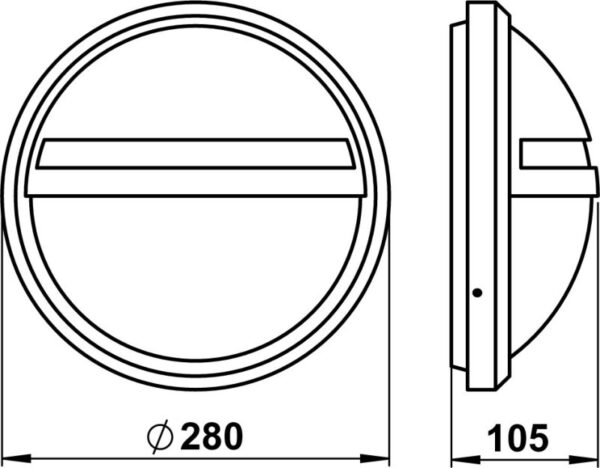

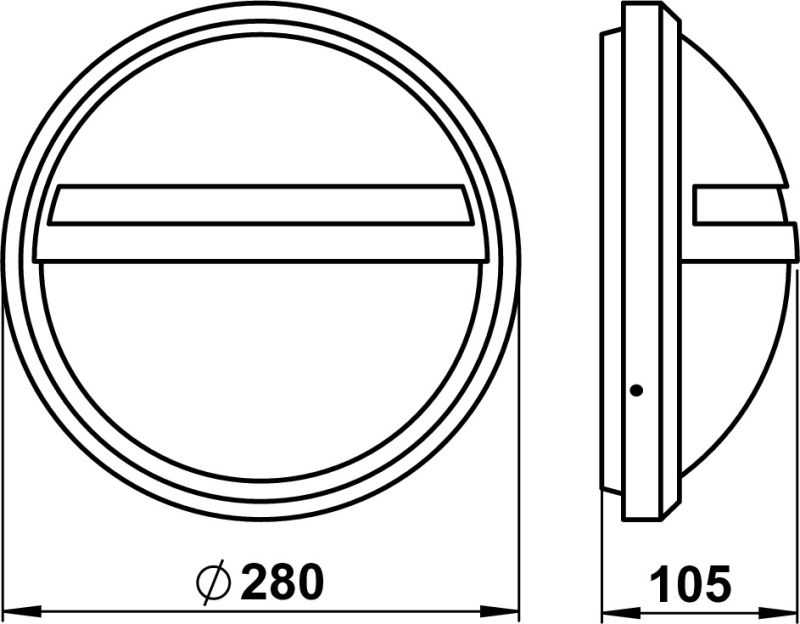

Dimensioned drawing
Light distribution curve
Offertext
For: 666106
Offertext
For: 686106
Full catalog 21 / 22
Spare parts
90210305 - G 305, glass round, opal-etched matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, White

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Protection class

I

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

No dim function

Yes

Outer diameter

280 mm

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Degree of protection (IP)

IP44

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Dimming depending on control gear

Yes

Max. system power

75 W

Power factor

1

Length

105 mm

Suitable for lamp power

1 – 75 W

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Style

Modern
