Data sheet
Article number
Select a color, please
Pole light 3-light
type ..2052
€878,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W
Material cover
Glass opal
Pole included
Ja, Yes
Documents and files
Assembly instruction

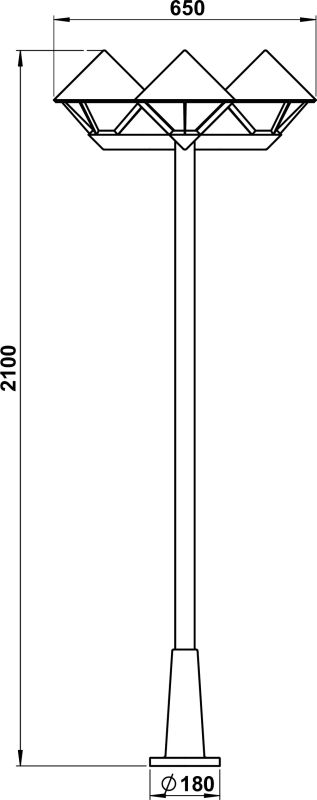

Dimensioned drawing
Offertext

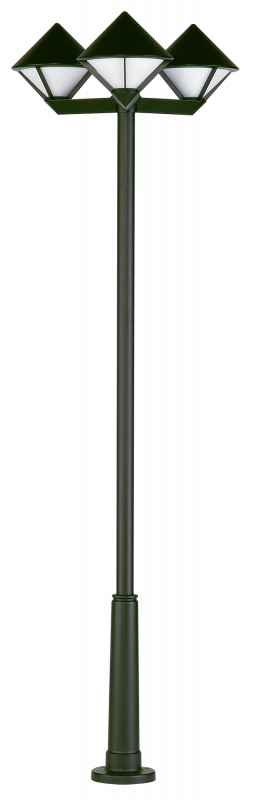

For: 662052
Offertext

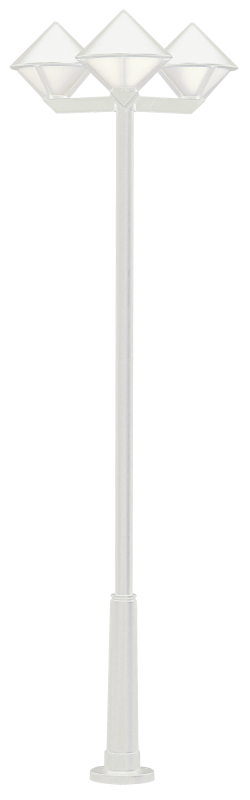

For: 682052
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Mounting Type | Post top |
| Type of control gear | Not required |
| Surface protection | Lacquered |
| Material housing | Aluminium |
| Height | > 1700 mm |
| Lamp type | HV halogen lamp |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 3 |
| Lamp holder | E27 |
| Material cover | Glass opal |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Degree of protection (IP) | IP44 |
| Colour housing | Black, White |
| Max. system power | 225 W |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Suitable for through wiring |
| Diameter | 650 mm |
| Style | Modern |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Protection class | I |
| No dim function | Yes |
| Pole included | Ja, Yes |
| Power factor | 1 |
| Height/depth | 2100 mm |
| Suitable for lamp power | 1 – 225 W |
| Cable length | 0 m |
| Connection type | Screwed terminal |
| Light type | Standleuchte |
| Shape | Angular, Eckig |
