Article number Select a color, please

Wall and ceiling light

type ..6105

162,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Protection class

I

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Max. system power

75 W

Length

120 mm

Dimming manufacturer's proprietary system

Yes

Suitable for number of lamps

1

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Shape

Eckig

No dim function

Yes

Power factor

1

Number of poles

3

Outer diameter

280 mm

Surface protection housing

Lacquered

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Dimming depending on control gear

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Style

Modern

Light output

1-seitig

Photobiological safety according to EN 62471

RG1

Type of wiring

Ending

Unified Glare Ratio (UGR)

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Documents and files
Data sheet
Assembly instruction
PDF | 26 KB

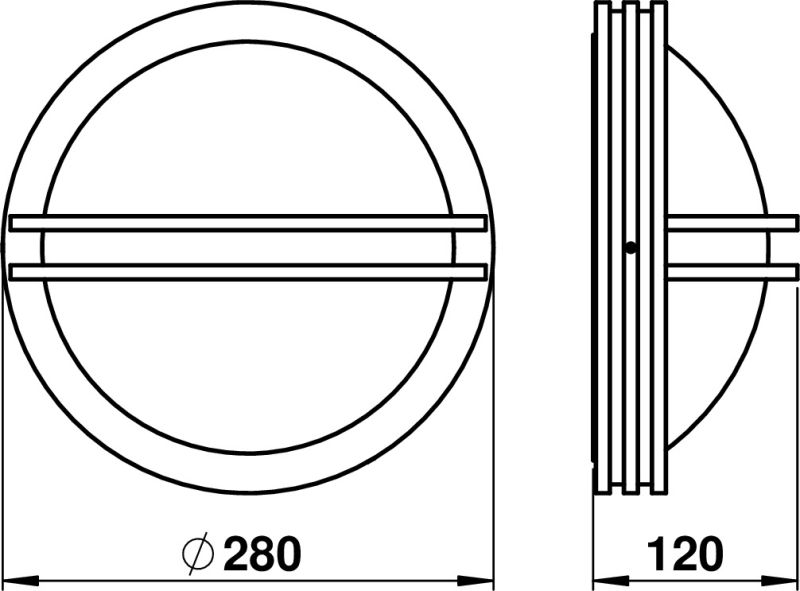

Dimensioned drawing
PDF | 19 KB
Light distribution curve - Eulumdat/LDT
LDT | 896 B
Offertext
For: 666105
TXT | 423 B
Offertext
For: 686105
TXT | 420 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210305 - G 305, glass round, opal-etched matt show
Accessories
90750100 - LED Retrofit Classic show
