Article number Select a color, please

Pole light 3-light

type ..2073

1.086,00

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W
Material cover
Glass opal
Pole included
Ja
Documents and files
Assembly instruction

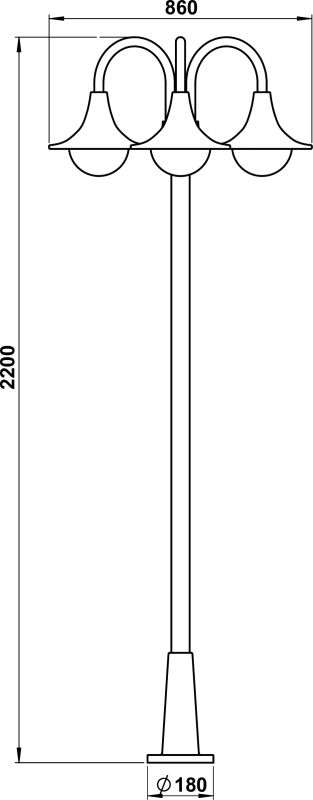

Dimensioned drawing
Offertext
For: 662073
Offertext
For: 682073
Full catalog 21 / 22
Spare parts
90210147 - G 147, glass opal matt, d = 220 mm show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top

Material cover

Glass opal

Dimming phase cut-on

Yes

Suitable for number of lamps

3

Lamp holder

E27

Dimming phase cut-off

Yes

Nominal voltage

230 V

Voltage type

AC

Degree of protection (IP)

IP44

Colour housing

Black, White

Type of control gear

Not required

Surface protection

Lacquered

Material housing

Aluminium

Height

> 1700 mm

Lamp type

HV halogen lamp

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. system power

225 W

Protection class

I

No dim function

Yes

Pole included

Ja

Power factor

1

Height/depth

2200 mm

Suitable for lamp power

1 – 225 W

Cable length

0 m

Connection type

Screwed terminal

Light type

Standleuchte

Type of wiring

Suitable for through wiring

Diameter

860 mm

Style

Modern

Number of poles

3

Conductor cross section

2.5 mm²

Shape

Eckig
