Article number Select a color, please

Path light

type ..2081

202,30

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

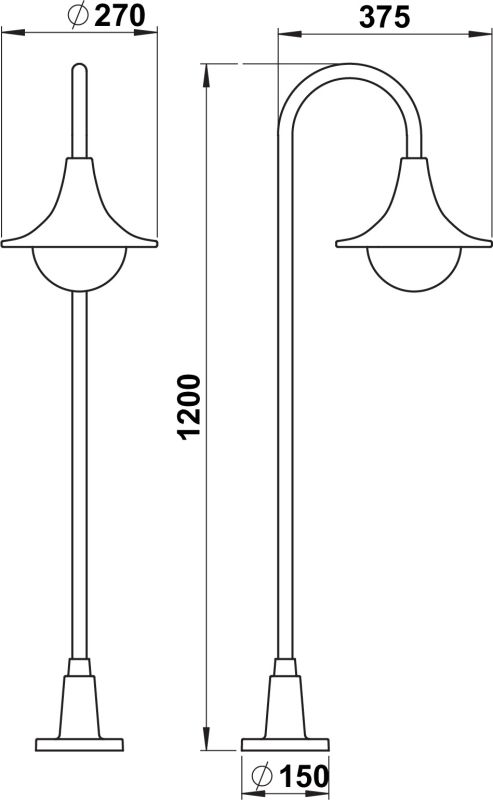

Dimensioned drawing
Light distribution curve
Offertext
For: 662081
Offertext
For: 682081
Full catalog 21 / 22
Spare parts
90210094 - G 94, glass opal matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Material housing

Aluminium

With base plate

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Material cover

Glass opal

Colour housing

Black, White

Highest energy efficiency class of the exchangeable lamp

A++

Surface protection

Lacquered

Lamp holder

E27

Suitable for number of lamps

1

Lamp type

HV halogen lamp, Incandescent lamp

Lowest energy efficiency class of the exchangeable lamp

A

Height/depth

1200 mm

Shape

Eckig

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Diameter

270 mm

Width

150 mm

Power factor

1

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Height

1001 – 1700 mm

Style

Modern
