Data sheet
Article number
Select a color, please

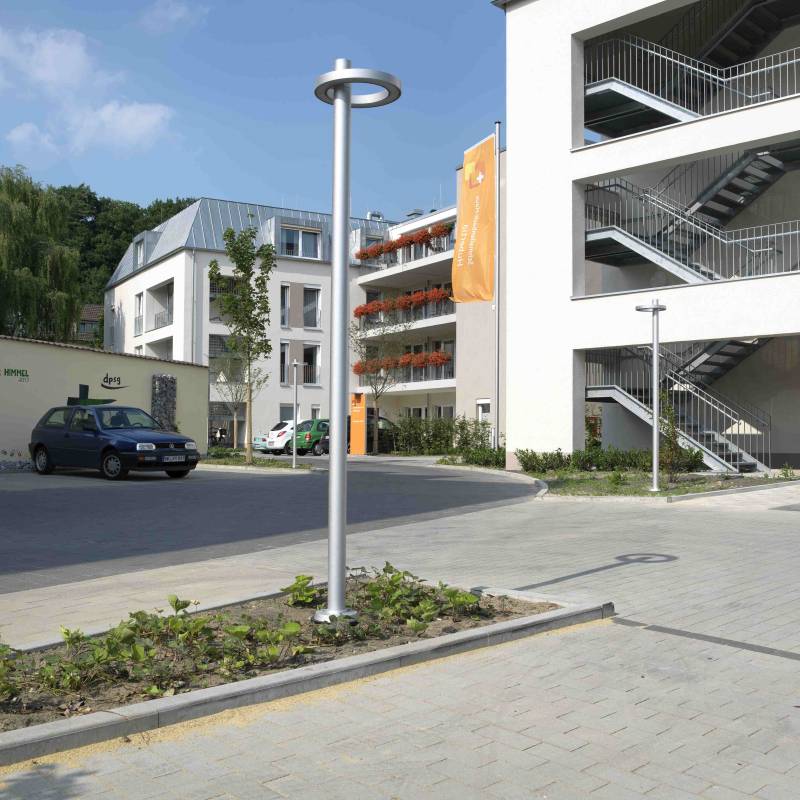

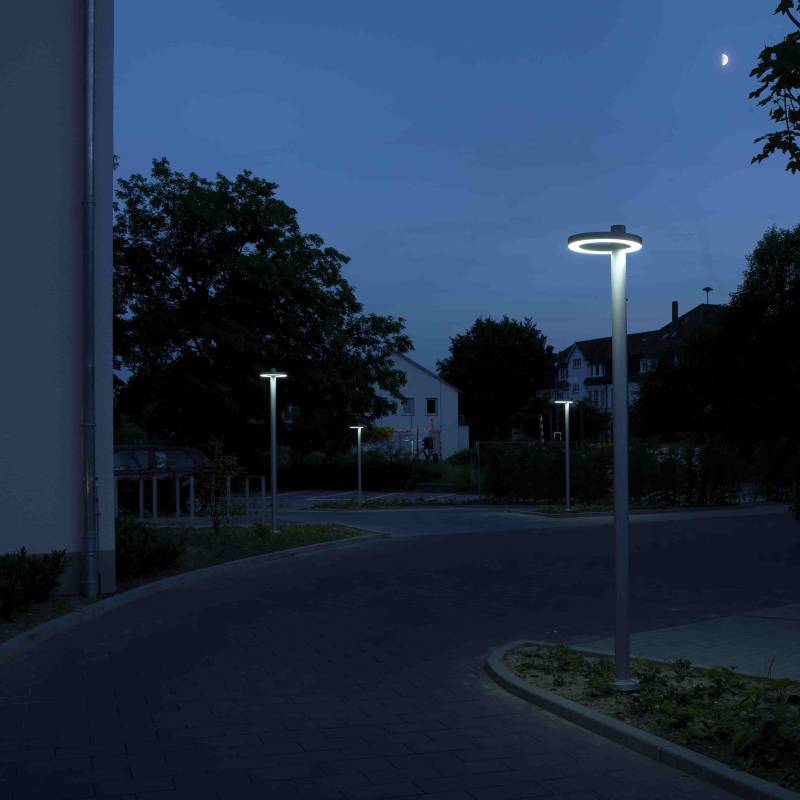

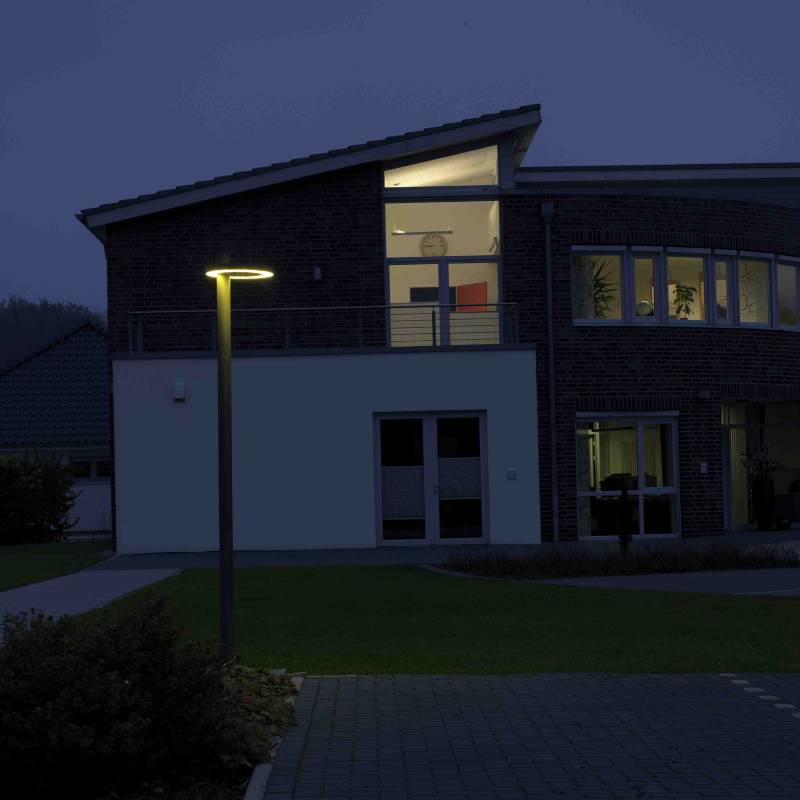

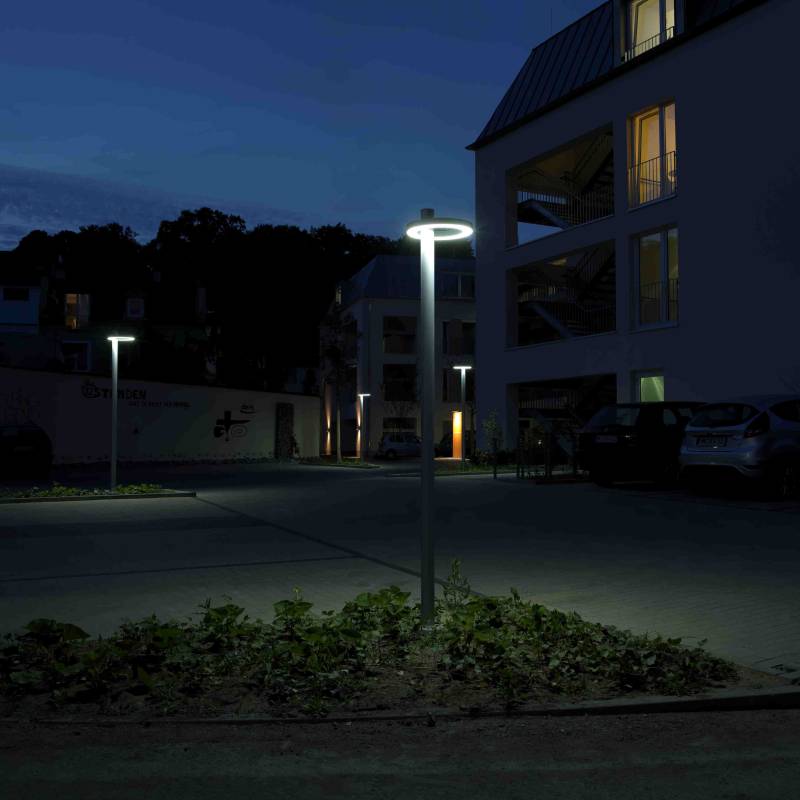

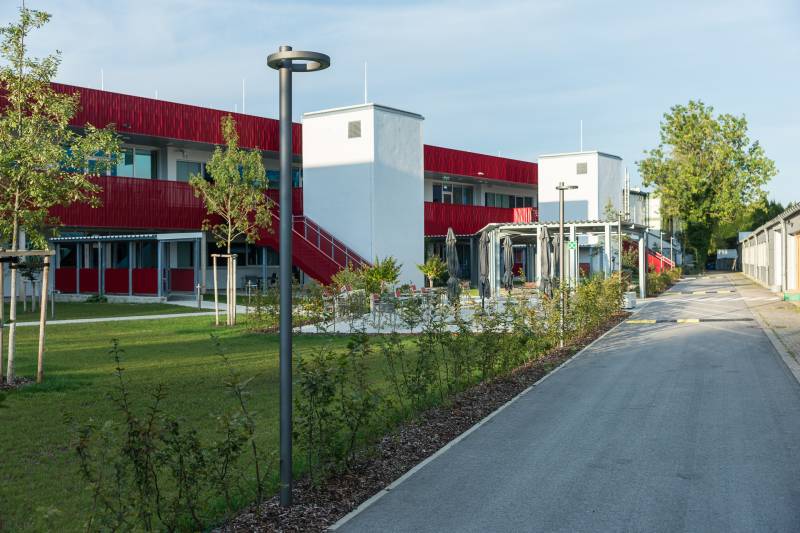

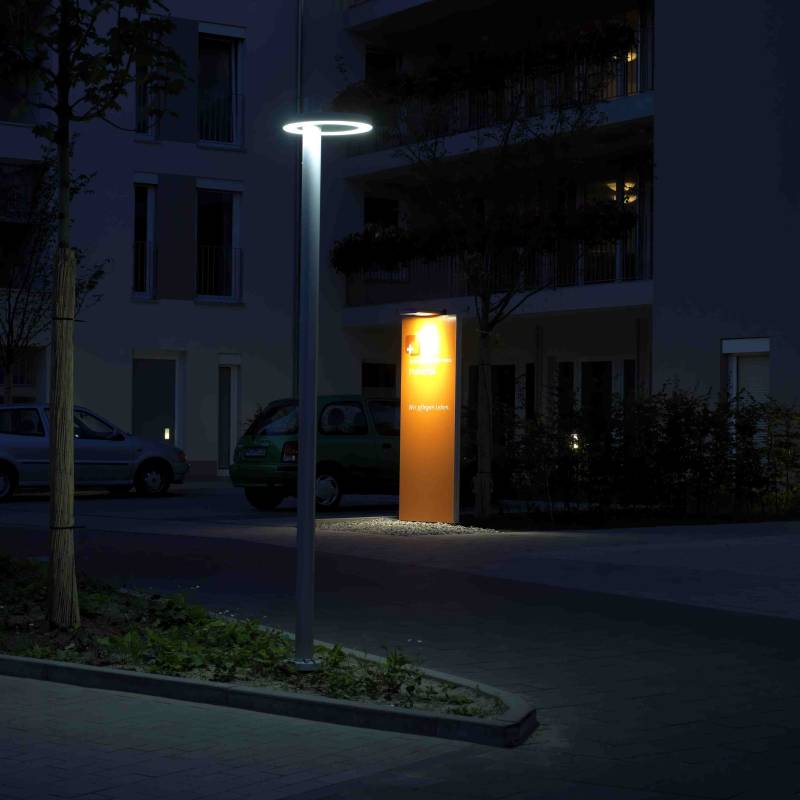

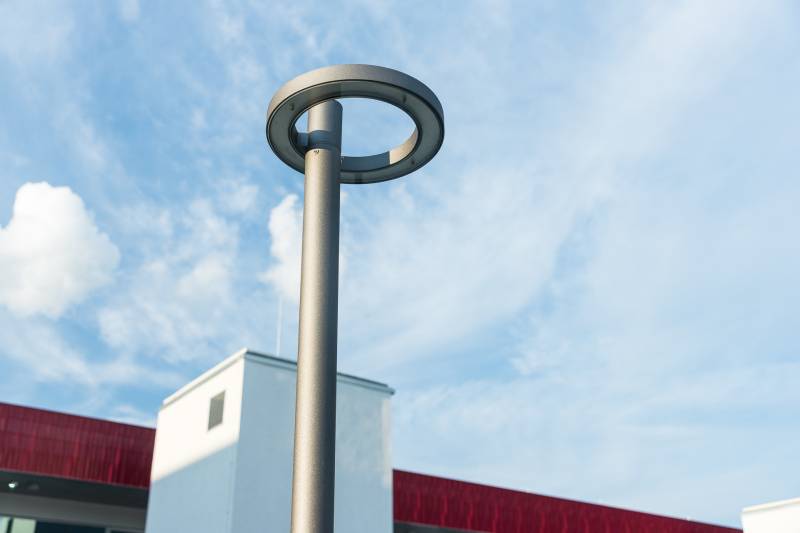

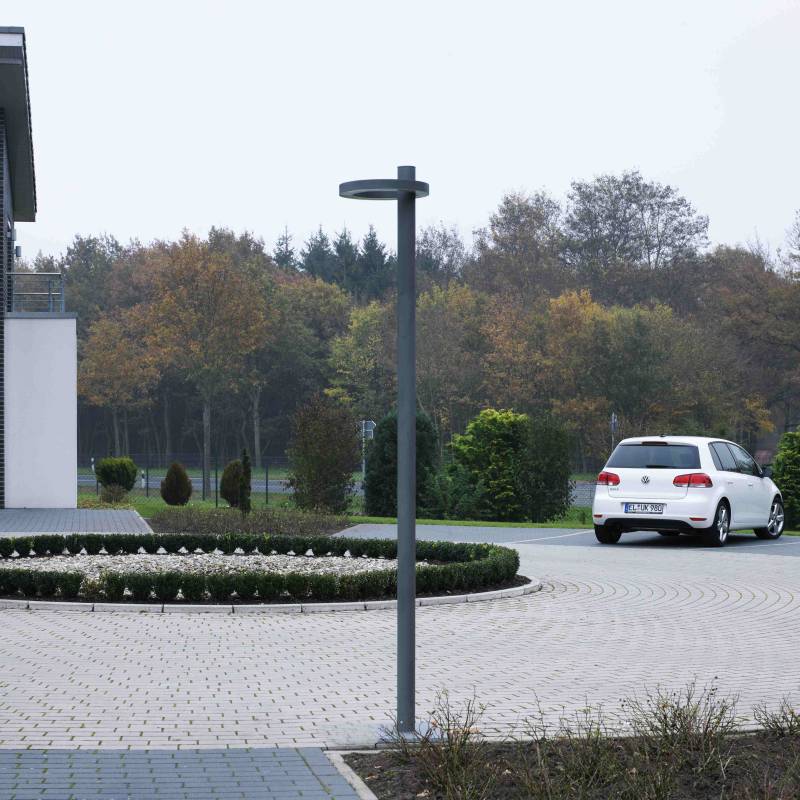

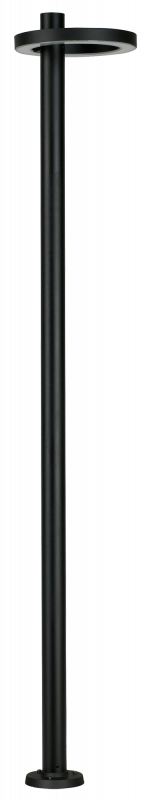

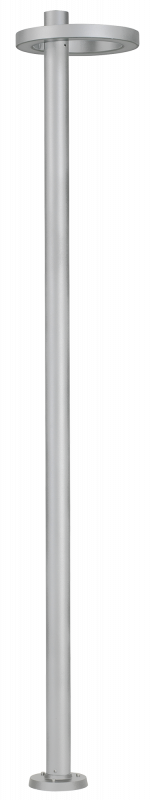

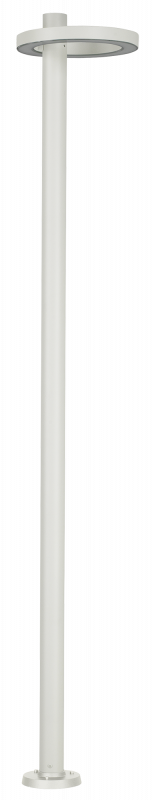

Pole light
type ..0864
€1.563,00 – €1.797,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
32 W
Rated luminous flux according to IEC 62722-2-1
2600 lm
Colour temperature
3000 K
Material cover
Glass structured
Pole included
Ja
Documents and files
Assembly instruction

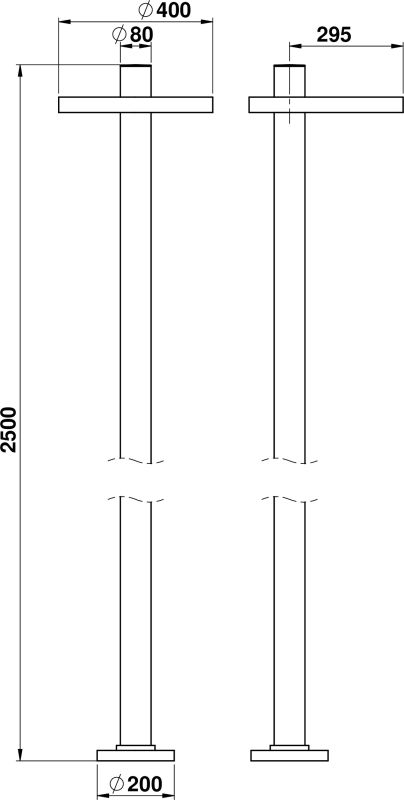

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620864
Offertext
For: 660864
Offertext
For: 680864
Offertext
For: 690864
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Mounting Type | Post top |
| Type of wiring | Suitable for through wiring |
| Dimming phase cut-off | Yes |
| Nominal voltage | 230 V |
| With control gear | Yes |
| Colour housing | Anthracite, Black, Silver, White |
| Material cover | Glass structured |
| Lamp type | LED exchangeable |
| Material housing | Aluminium |
| Suitable for number of lamps | 1 |
| With light source | Yes |
| Voltage type | AC |
| Cable length | 0 m |
| Type of control gear | LED operating device voltage-controlled |
| Conductor cross section | 2.5 mm² |
| Height/depth | 2500 mm |
| Degree of protection (IP) | IP54 |
| Number of poles | 3 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light type | Standleuchte |
| Diameter | 400 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.9 |
| Connection type | Screwed terminal |
| Rated luminous flux according to IEC 62722-2-1 | 2600 lm |
| Surface protection | Lacquered |
| Max. system power | 32 W |
| Protection class | I |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Colour of light | White |
| Suitable for lamp power | 32 W |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour temperature | 3000 K |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Exchangeable control gear | Yes |
| Height | > 1700 mm |
| Pole included | Ja |
| Shape | Eckig |
Related products
-
Base luminaire type ..0503excl. VAT
-
Recessed housing with protective contact socket IP44 / Dexcl. 19% VAT
-

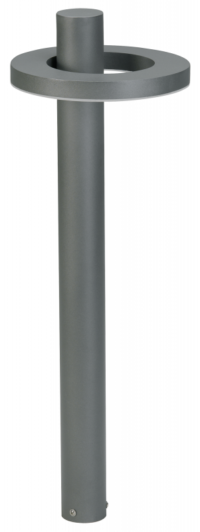

Bollard light type ..2012excl. VAT
-
