Article number Select a color, please

Bollard light

type ..2093

661,80761,20

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Colour temperature
3000 K
Material cover
Glass structured
Documents and files
Assembly instruction

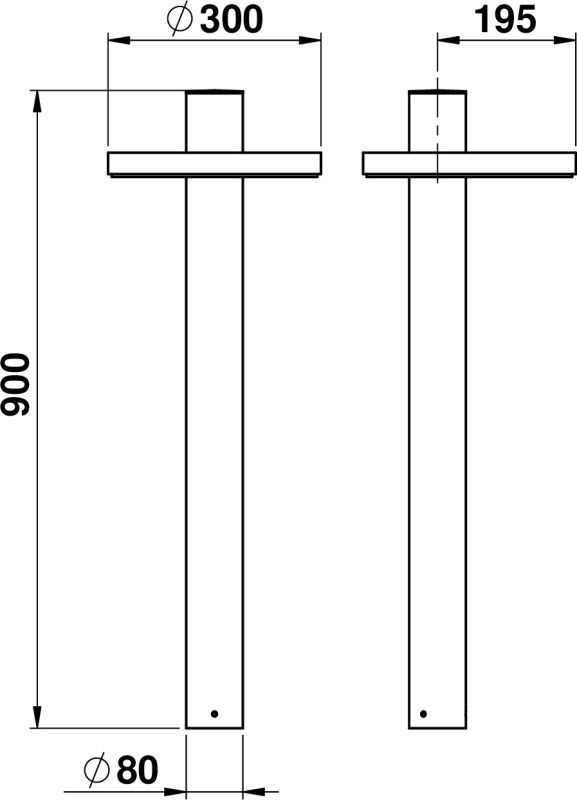

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622093
Offertext
For: 662093
Offertext
For: 682093
Offertext
For: 692093
Full catalog 21 / 22
Spare parts
90220440 - G 440, ESG glass ring show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
With light source

Yes

Colour temperature

3000 K

Highest energy efficiency class of the exchangeable lamp

A+

Conductor cross section

2.5 mm²

Max. system power

16 W

Suitable for lamp power

16 W

Voltage type

AC

Material cover

Glass structured

Colour housing

Anthracite, Black, Silver, White

Energy efficiency class of the provided exchangeable built-in lamp

E

Material housing

Aluminium

Suitable for number of lamps

1

With base plate

Yes

Protection class

I

Surface protection

Lacquered

With control gear

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Lowest energy efficiency class of the exchangeable lamp

E

Lamp type

LED exchangeable

Beam angle adjustable

Continuously variable

Colour rendering index CRI

80-89

Height

700 – 1000 mm

Degree of protection (IP)

IP54

Max. number of luminaires per miniature circuit breaker C16

30

Light output

Indirect

Connection type

Screwed terminal

Number of poles

3

Max. number of luminaires per miniature circuit breaker B16

20

Light type

Standleuchte

Height/depth

900 mm

Type of luminaire

Bollard luminaire

Exchangeable control gear

Yes

Type of wiring

Suitable for through wiring

Light sharing

Symmetric

Colour of light

White

Stroboscope effect value SVM

0.4

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Diameter

300 mm

Power factor

0.9

Shape

Eckig
