Article number Select a color, please

Post-top luminaire

type ..0847

856,20984,70

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
DALI control Product-Icon Luminaire can be supplied for DALI control.
Luminaire can be supplied for DALI control.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Amber LED possible Product-Icon Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
28 W
Rated luminous flux according to IEC 62722-2-1
3000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Suitable for spigot size
76 mm
Weight N/A
Mounting Type

Post top

Dimming 0-10 V

Yes

With control gear

Yes

Dimming phase cut-on

No, Yes

Nominal voltage

230 V

Voltage type

AC/DC

Surface protection

Lacquered

Suitable for number of lamps

1

Height/depth

520 mm

Dimming phase cut-off

No, Yes

Dimming DALI

Yes

No dim function

Yes

Diameter

150 mm

Cable length

0 m

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light distributor

Refractor lens

Colour rendering index CRI

80-89

Light type

Mastaufsatzleuchte

Max. system power

28 W, 30 W

Energy efficiency class of the provided exchangeable built-in lamp

E

Colour of light

White

Type of control gear

LED operating device current-controlled

Power factor

0.9

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Type of wiring

Suitable for through wiring

Degree of protection (IP)

IP54

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig

Recommendations

This product is suitable for light poles with a pole top end diameter of 76mm.

Documents and files
Data sheet
Assembly instruction
PDF | 56 KB

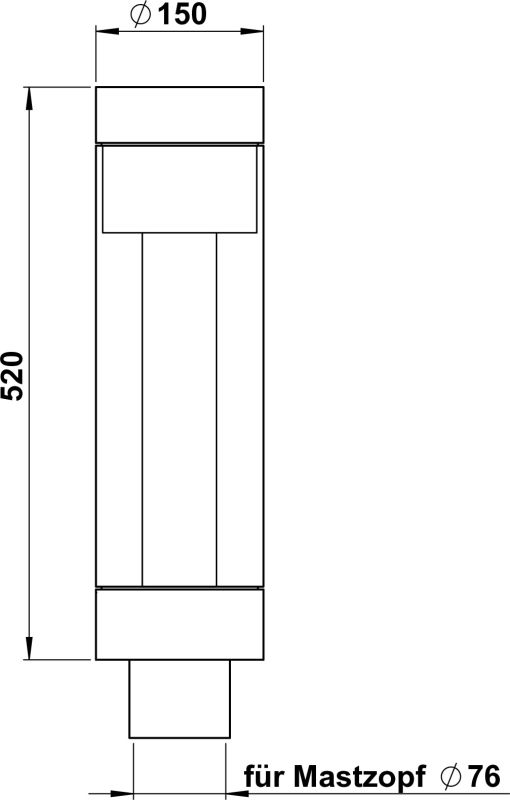

Dimensioned drawing
PDF | 61 KB
Light distribution curve - Eulumdat/LDT
LDT | 130 KB
Offertext
For: 620847
TXT | 234 B
Offertext
For: 660847
TXT | 229 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260400 - G-400, acrylic,150 x 3 mm, 395 mm
Für: 620847
show
Accessories
661008 - Wall bracket black type ..1008 show
661009 - Mast top black type ..1009 show
661010 - Mast top black type ..1010 show
