Article number Select a color, please

Wall floodlight

type ..2442

431,70496,50

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
3200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

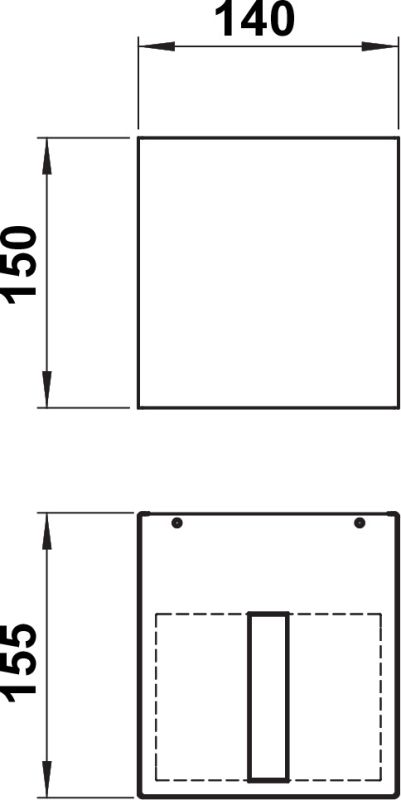

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622442
Offertext
For: 662442
Full catalog 21 / 22
Spare parts
90220337 - G 337, prism glass, borosilicate
Für: 622442
show
90220437 - G 437, toughened safety glass
Für: 662442
show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Suitable for wall mounting

Yes

Suitable for pedestal/floor mounting

Yes

With control gear

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

2

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Glass transparent

Adjustability

Not adjustable

Type of control gear

LED operating device voltage-controlled

Exchangeable control gear

Yes

Dimming phase cut-off

Yes

Voltage type

AC/DC

Nominal voltage

230 V

No dim function

Yes

Colour of light

White

Light output

2-seitig

Colour rendering index CRI

80-89

Light output

Direct/indirect

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

16 W

Max. system power

32 W

Shape

Eckig

Height/depth

150 mm

Luminous flux

3200 lm

Rated luminous flux according to IEC 62722-2-1

3200 lm

Power factor

0.9

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Colour temperature

3000 K

Light sharing

Symmetric

Max. number of luminaires per miniature circuit breaker B16

20

Light distributor

Focal lens

Length

155 mm

Width

140 mm

Beam angle

Medium beam 21-40°

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker C16

30

Type of wiring

Ending

Colour consistency (McAdam ellipse)

SDCM3

Unified Glare Ratio (UGR)

1

Height

< 700 mm
