Article number Select a color, please

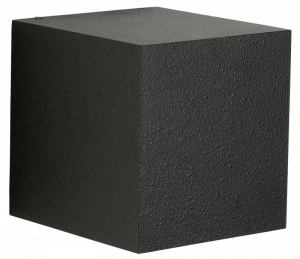

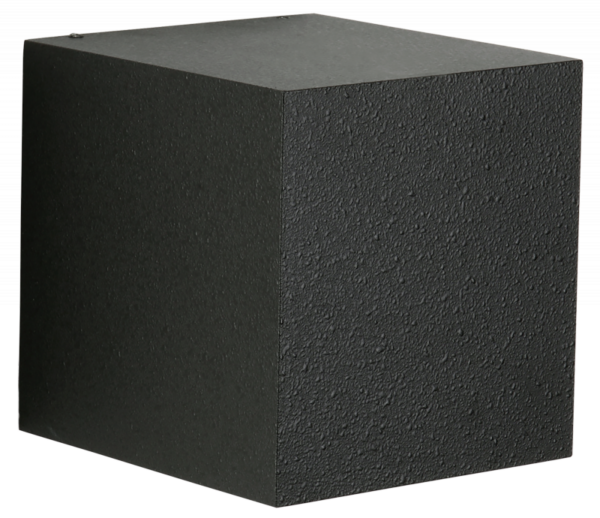

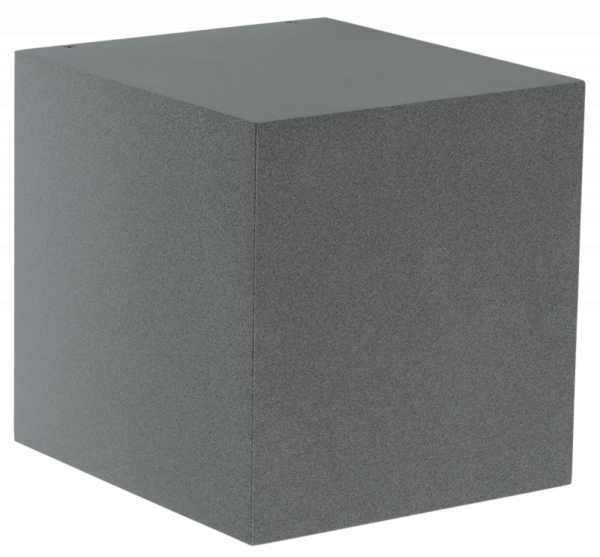

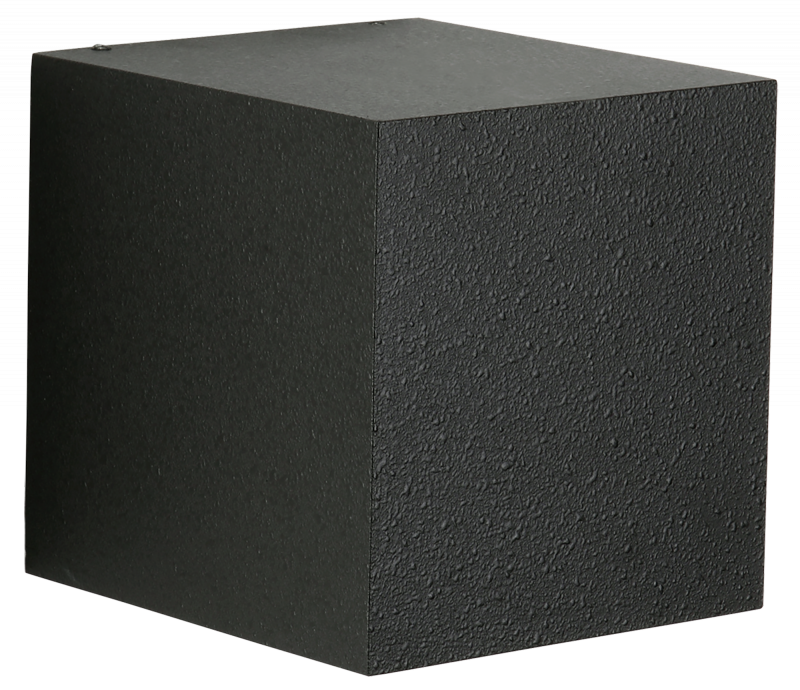

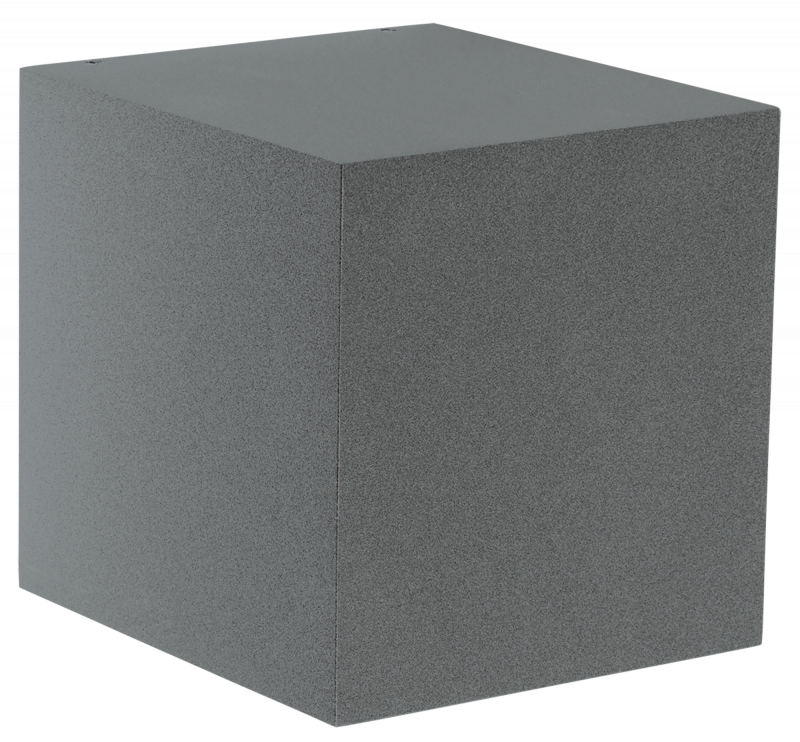

Wall floodlight

type ..2451

398,30458,00

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622451
Offertext
For: 662451
Full catalog 21 / 22
Spare parts
90220437 - G 437, toughened safety glass show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Nominal voltage

230 V

Suitable for wall mounting

Yes

Suitable for pedestal/floor mounting

Yes

No dim function

Yes

Type of control gear

LED operating device voltage-controlled

Adjustability

Not adjustable

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Glass transparent

With control gear

Yes

Exchangeable control gear

Yes

Dimming phase cut-off

Yes

Voltage type

AC/DC

Width

140 mm

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for lamp power

16 W

Max. system power

16 W

Colour temperature

3000 K

Length

155 mm

Luminous flux

1600 lm

Rated luminous flux according to IEC 62722-2-1

1600 lm

Power factor

0.9

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Number of poles

3

Light sharing

Symmetric

Beam angle

Medium beam 21-40°

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Type of wiring

Ending

Colour of light

White

Colour consistency (McAdam ellipse)

SDCM3

Unified Glare Ratio (UGR)

1

Shape

Eckig

Light output

1-seitig

Height/depth

150 mm

Height

< 700 mm
