Data sheet

Article number

Spit lamp

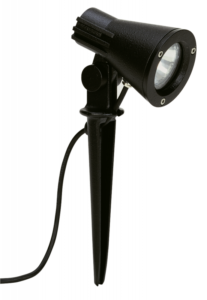

Name: Spit lamp type ..2154
SKU: TYPE-2154-6-2-2154
Availability: InStock

type ..2154

€126,40

Manufacturer's Suggested Retail Price excl. VAT

Colour housing

Clear

Features

The luminaire body can be rotated.

The reflector lamp is replaceable.

Material housing

Aluminium

Colour housing

Black, White

Lamp type

HV halogen lamp

Lamp holder

E27

Suitable for lamp power

50 W

Material cover

Glass transparent

Weight	N/A
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C

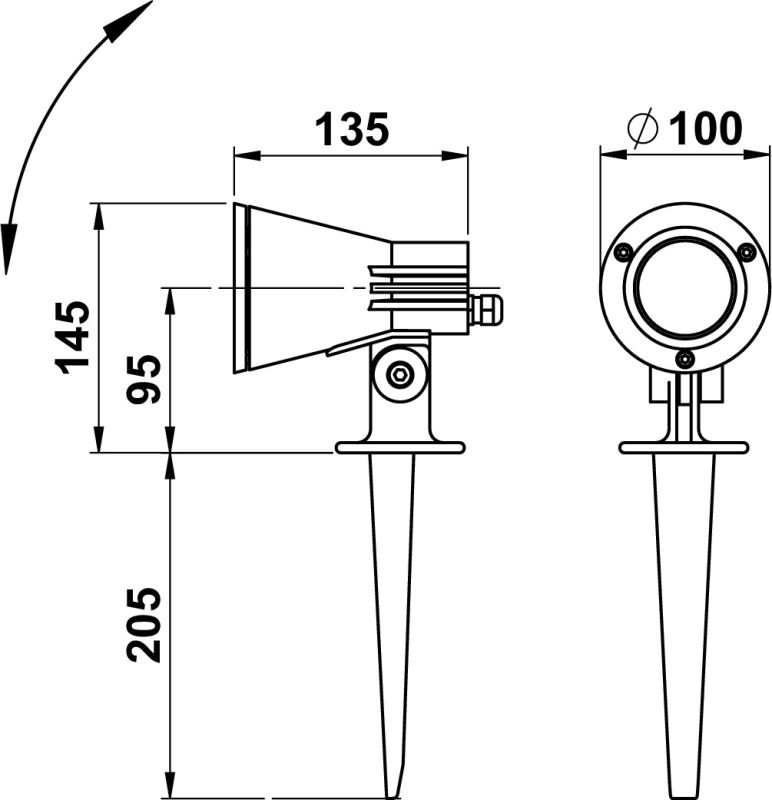

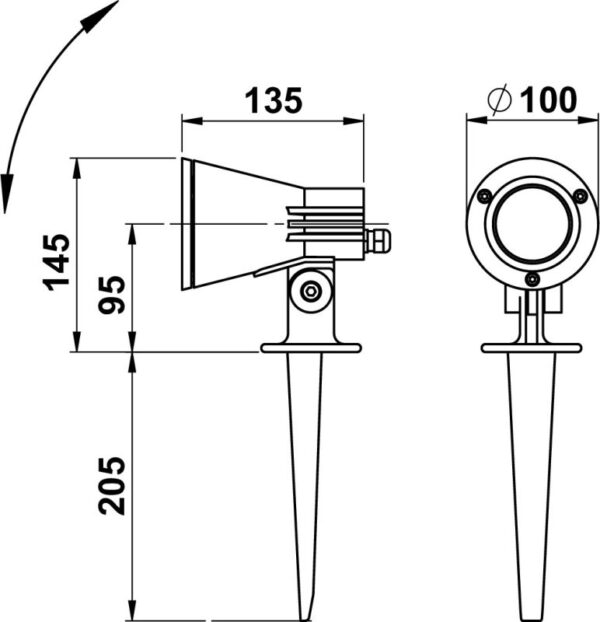

Length	135 mm
Protection class	I
No dim function	Yes
Connectable conductor cross section	0 mm²
Number of poles	3
Outer diameter	100 mm
Degree of protection (IP)	IP54
Max. system power	50 W
Type of wiring	Ending
Conductor cross section	0 mm²
Unified Glare Ratio (UGR)	1
Beam angle adjustable	Continuously variable
Light sharing	Symmetric
Height	< 700 mm
Light outlet	1-seitig
Mounting method	Spieß
Shape	Angular, Eckig
Luminous flux	0 – 3000 lm
Adjustability	Rotating and swivelling
Suitable for number of lamps	1
Voltage type	AC
Power factor	1
Beam angle	Medium beam 21-40°
Light outlet	Direct
Suitable for pedestal/floor mounting	Yes
Nominal voltage	230 V
Height/depth	145 mm
Dimming phase cut-off	Yes
Surface protection	Lacquered
Type of control gear	Not required
Dimming depending on control gear	Yes

Documents and files

Offertext

For: 662154

TXT | 298 B

Offertext

For: 682154

TXT | 296 B

Full catalog 21 / 22

PDF | 38.74 MB

Spare parts

90220114 - G 114, borosilicate glass round disc show

Accessories

90750108 - LED PAR 20 show
