Article number 696119

Wall lamp

type ..6119

176,80

Description

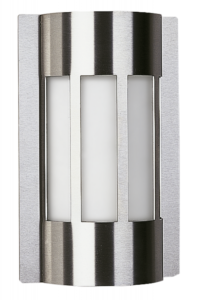

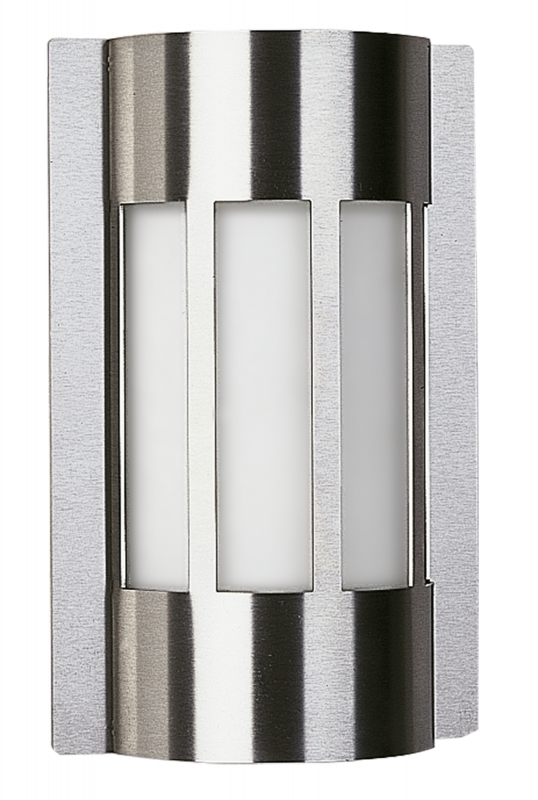

Albert wall lamp 696119
in stainless steel with opal glass, mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27, protection IP 44 – protection class : 180 x 280 x 90 mm.

Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

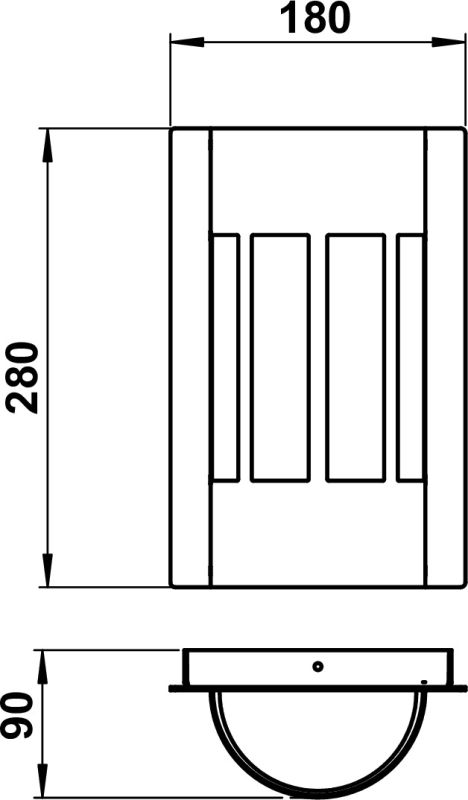

Dimensioned drawing
Light distribution curve
Full catalog 21 / 22
Spare parts
90210107 - G 107, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight 2.50 kg
Suitable for wall mounting

Yes

Protection class

I

Lamp holder

E27

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Suitable for number of lamps

1

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Light sharing

Symmetric

Light output

1-seitig

Width

18 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Shape

Eckig

Style

Edelstahl, Modern

Mounting Type

Wand

Height/depth

280 mm

Light type

Wandleuchte

Length

90 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

No dim function

Yes

Max. system power

75 W

Beam angle

Open beam/diffuse

Light output

Direct

Lowest energy efficiency class of the exchangeable lamp

A

Height

< 700 mm
