Data sheet
Article number
Select a color, please
Spit lamp
type ..2390
€351,50 – €404,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

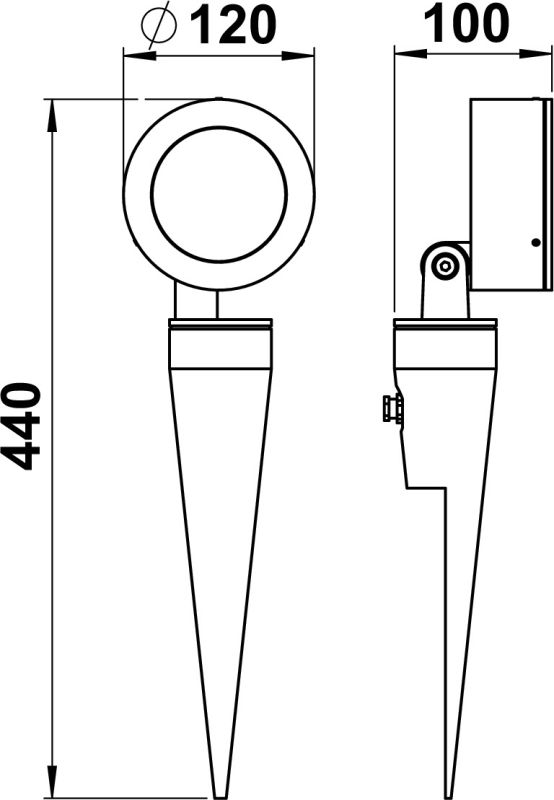

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622390
Offertext
For: 662390
Offertext
For: 682390
Offertext
For: 692390
Full catalog 21 / 22
Spare parts
| 90220315 - G 315, glass / stepped glass ESG | show |
Additional information
| Weight | N/A |
|---|---|
| Rated luminous flux according to IEC 62722-2-1 | 1200 lm |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | Yes |
| Material housing | Aluminium |
| Outer diameter | 120 mm |
| Light distributor | Reflector |
| Connectable conductor cross section | 0 mm² |
| With control gear | Yes |
| Colour housing | Anthracite, Black, Silver, White |
| Nominal voltage | 230 V |
| Lamp type | LED exchangeable |
| Voltage type | AC |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Type of control gear | LED operating device voltage-controlled |
| Material cover | Glass transparent |
| Dimming phase cut-off | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Luminous flux | 1200 lm |
| Colour of light | White |
| Height/depth | 440 mm |
| Surface protection | Lacquered |
| Conductor cross section | 0 mm² |
| Colour temperature | 3000 K |
| Light sharing | Symmetric |
| Length | 100 mm |
| Power factor | 0.9 |
| Reflector | High-gloss |
| Flickering value Pst LM | 1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Protection class | I |
| No dim function | Yes |
| Type of wiring | Ending |
| Colour rendering index CRI | 80-89 |
| Number of poles | 3 |
| Degree of protection (IP) | IP54 |
| Beam angle | Medium beam 21-40° |
| Max. system power | 12 W |
| Mounting Type | Spieß |
| Light output | 1-seitig |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Light output | Direct |
| Suitable for lamp power | 12 W |
| Beam angle adjustable | Continuously variable |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
