Article number Select a color, please

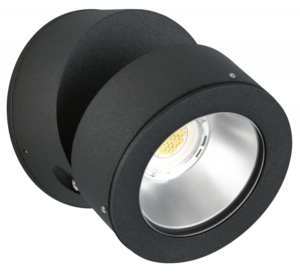

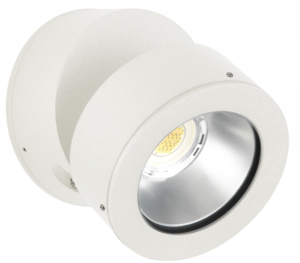

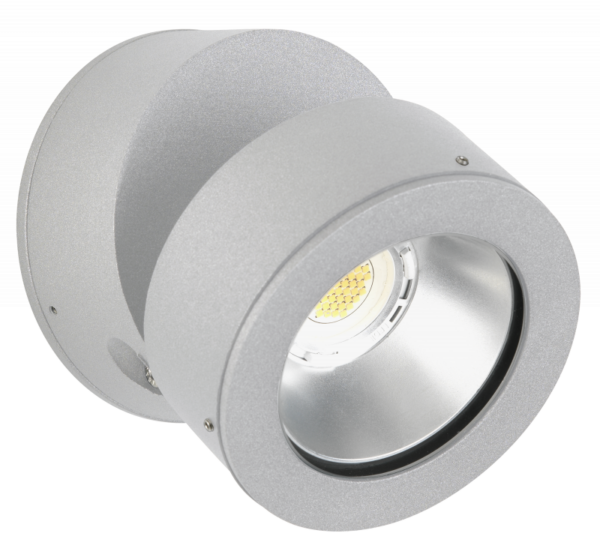

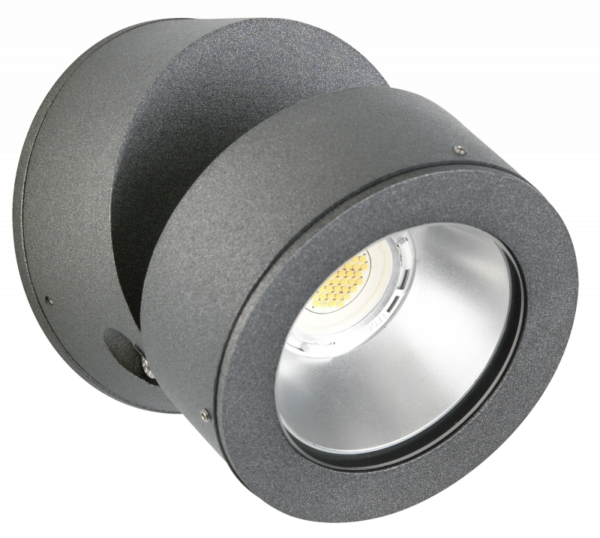

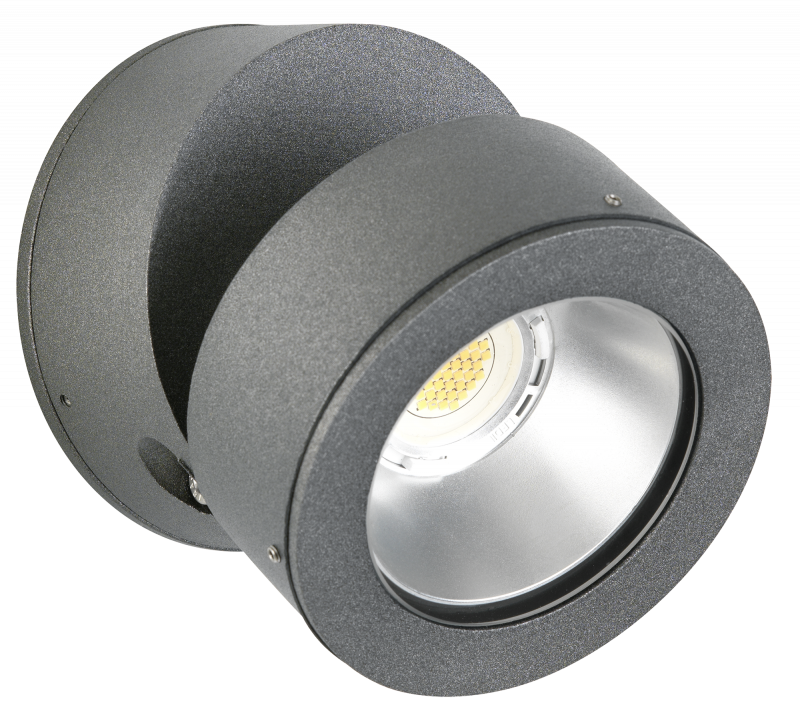

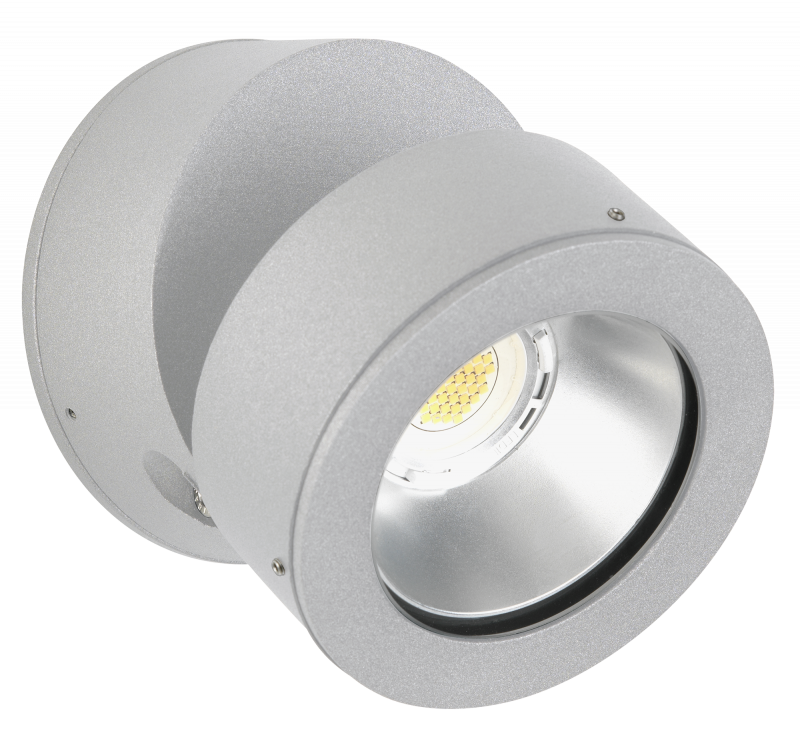

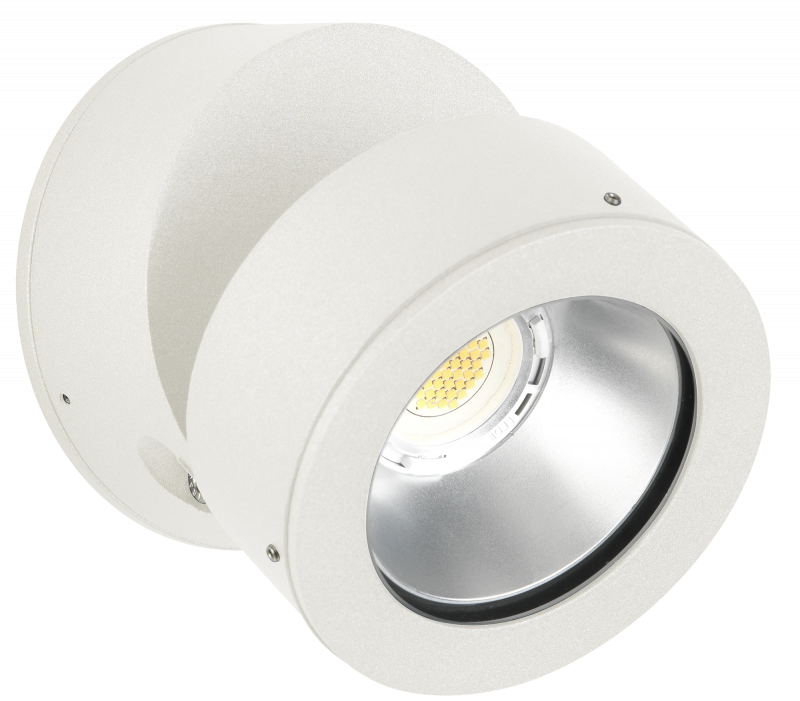

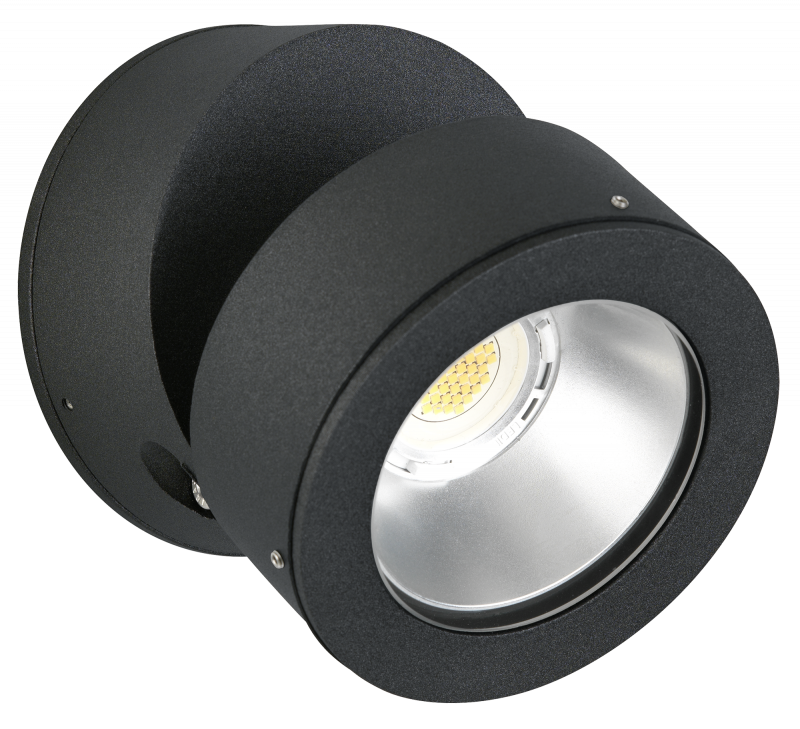

Wall floodlight

type ..2389

354,30405,60

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

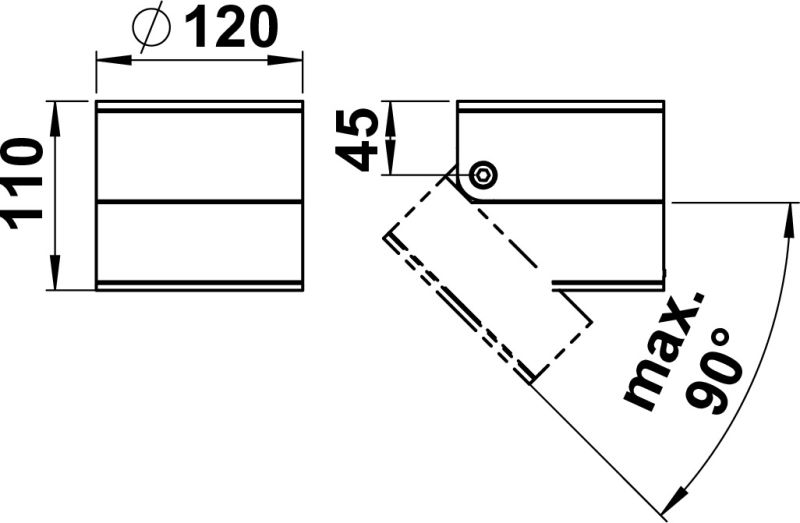

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622389
Offertext
For: 662389
Offertext
For: 682389
Offertext
For: 692389
Full catalog 21 / 22
Spare parts
90220315 - G 315, glass / stepped glass ESG show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Outer diameter

120 mm

Rated luminous flux according to IEC 62722-2-1

1200 lm

Surface protection

Lacquered

Connectable conductor cross section

0.75 – 2.5 mm²

Suitable for ceiling mounting

Yes

Adjustability

Rotating and swivelling

Suitable for pedestal/floor mounting

Yes

Material housing

Aluminium

Colour housing

Anthracite, Black, Silver, White

Nominal voltage

230 V

With control gear

Yes

Lamp type

LED exchangeable

Voltage type

AC

With light source

Yes

Suitable for number of lamps

1

Type of control gear

LED operating device voltage-controlled

Material cover

Glass transparent

Dimming phase cut-off

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Luminous flux

1200 lm

Colour of light

White

Height/depth

110 mm

Type of wiring

Ending

Energy efficiency class of the provided exchangeable built-in lamp

E

Protection class

I

No dim function

Yes

Suitable for lamp power

12 W

Max. system power

12 W

Light sharing

Symmetric

Length

45 mm

Power factor

0.9

Colour rendering index CRI

80-89

Number of poles

3

Degree of protection (IP)

IP54

Colour temperature

3000 K

Beam angle

Medium beam 21-40°

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Reflector

High-gloss

Colour consistency (McAdam ellipse)

SDCM3

Mounting Type

Decke

Light output

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Light output

Direct

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Shape

Eckig
