Data sheet
Article number
Select a color, please

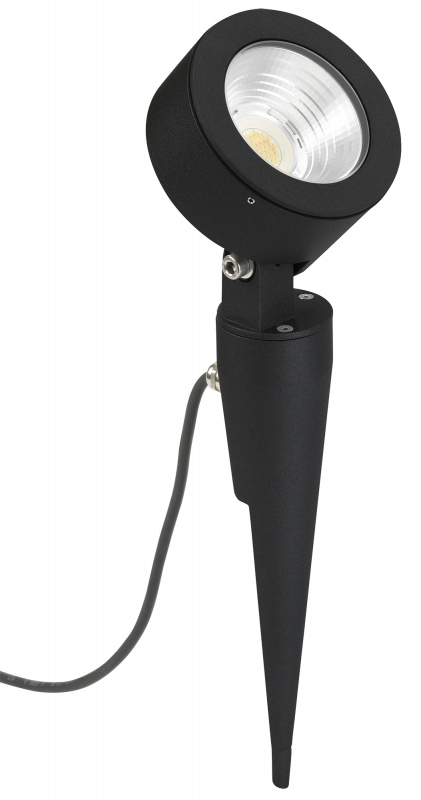

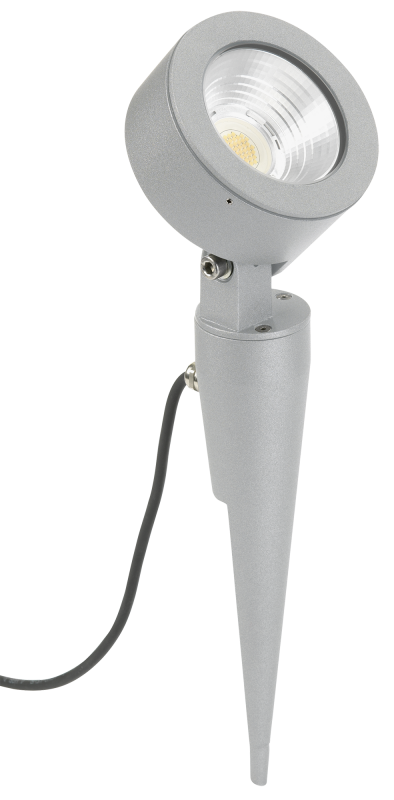

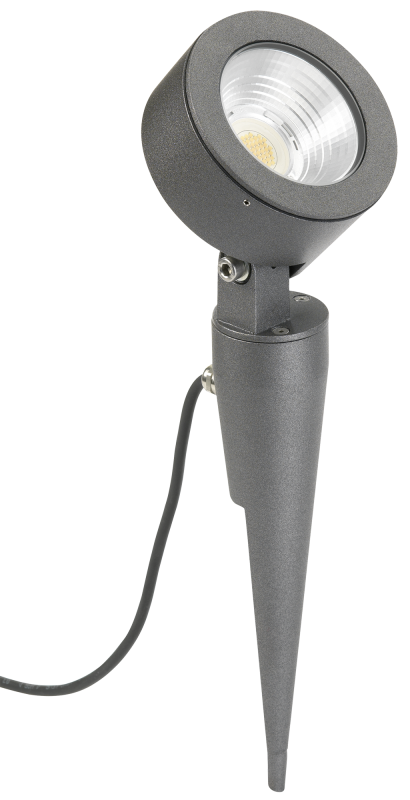

Spit lamp
type ..2390
€351,50 – €404,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

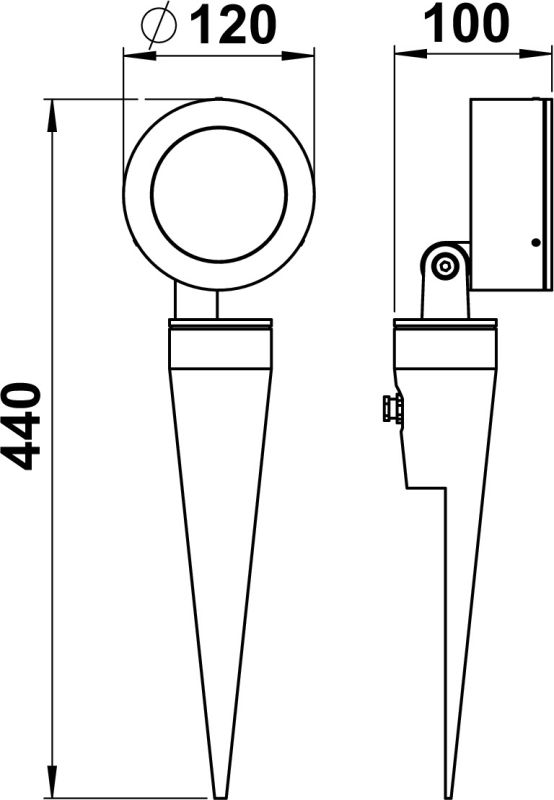

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622390
Offertext
For: 662390
Offertext
For: 682390
Offertext
For: 692390
Full catalog 21 / 22
Spare parts
| 90220315 - G 315, glass / stepped glass ESG | show |
Additional information
| Weight | N/A |
|---|---|
| Connectable conductor cross section | 0 mm² |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | Yes |
| Material housing | Aluminium |
| Outer diameter | 120 mm |
| Light distributor | Reflector |
| Nominal voltage | 230 V |
| Surface protection | Lacquered |
| Rated luminous flux according to IEC 62722-2-1 | 1200 lm |
| Dimming phase cut-off | Yes |
| Voltage type | AC |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Type of control gear | LED operating device voltage-controlled |
| Material cover | Glass transparent |
| Lamp type | LED exchangeable |
| Colour housing | Anthracite, Black, Silver, White |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Luminous flux | 1200 lm |
| Colour of light | White |
| Height/depth | 440 mm |
| With control gear | Yes |
| Reflector | High-gloss |
| Flickering value Pst LM | 1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Protection class | I |
| No dim function | Yes |
| Suitable for lamp power | 12 W |
| Max. system power | 12 W |
| Type of wiring | Ending |
| Colour rendering index CRI | 80-89 |
| Number of poles | 3 |
| Degree of protection (IP) | IP54 |
| Colour temperature | 3000 K |
| Beam angle | Medium beam 21-40° |
| Conductor cross section | 0 mm² |
| Light sharing | Symmetric |
| Power factor | 0.9 |
| Mounting Type | Spieß |
| Light output | 1-seitig |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Light output | Direct |
| Length | 100 mm |
| Beam angle adjustable | Continuously variable |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
