Article number 690040

Steel pole, 4000 mm, spigot 76

type ..0040

1.348,70

Description

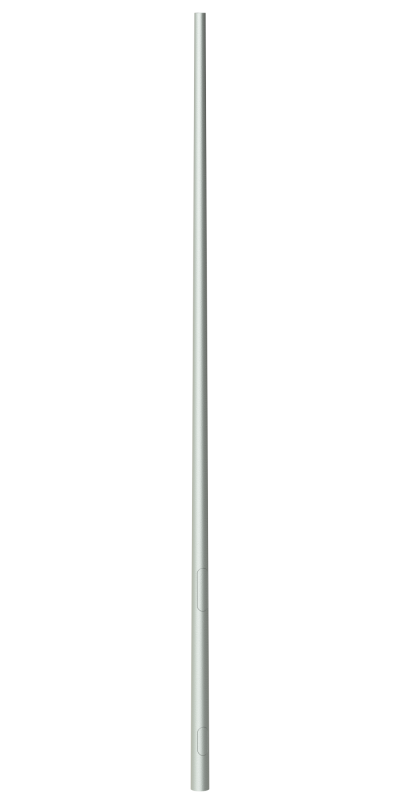

Albert steel pole 690040 hot-dip galvanized and unpainted, conical, for pole-top luminaires and 4,000 mm above floor level, with ground piece 800 76 door to accommodate a cable junction box 690036

Top end diameter
76 mm
Documents and files

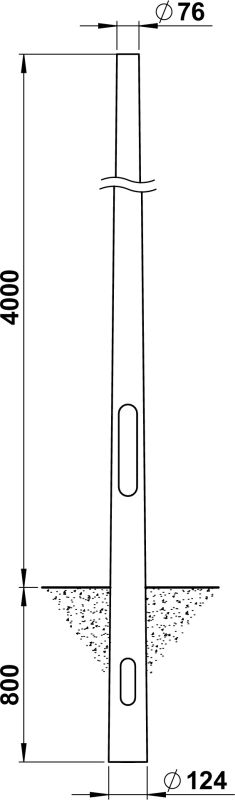

Dimensioned drawing
Full catalog 21 / 22
Accessories
690036 - KÜK Type No. 690036 show

Additional information

Weight 31,80 kg
Model

Cylindrical

Conical tapering

Yes

Top end diameter

76 mm

Diameter at base

124 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Galvanized

Light centre height

4 m

Total length

4.8 m

Total length

3501 – 4500 mm

Shape

Eckig
