Data sheet
Article number 690022
Steel pole, 3000 mm, spigot 76
type ..0022
€1.087,30
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert steel pole 690022
hot-dip galvanised and unpainted, cylindrically stepped. For post-top luminaires and Vario spotlights. Pole height 3,000 mm above ground, with ground piece 600 mm, pole spigot diameter 76 mm With door, to accommodate a cable transition box 690036
Top end diameter
76 mm
Documents and files

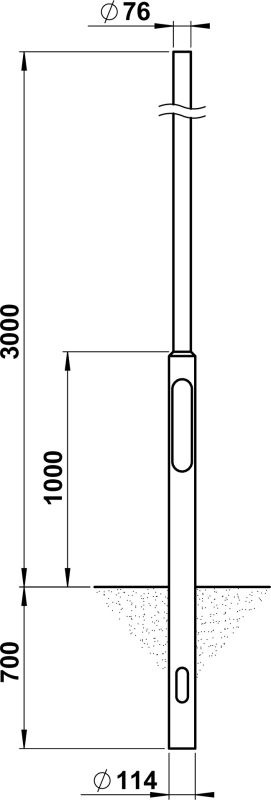

Dimensioned drawing
Full catalog 21 / 22
Accessories
| 690036 - KÜK Type No. 690036 | show |
Additional information
| Weight | 20,50 kg |
|---|---|
| Model | Cylindrical |
| Stepped shape | Yes |
| Top end diameter | 76 mm |
| Diameter at base | 114 mm |
| Wall thickness | 3 mm |
| Material | Steel |
| Surface protection | Galvanized |
| Light centre height | 3 m |
| Total length | 3.7 m |
| Total length | 3000 – 3500 mm |
| Shape | Eckig |
