Article number 690042

Steel pole, 5000 mm, spigot 76

type ..0042

818,40

Description

Albert steel pole 690042 hot-dip galvanized and unpainted, conical, for pole-top luminaires and 5,000 mm above ground, with ground piece 800 76 mm, with door to accommodate a cable junction box 690036

Colour
Stainless steel
Top end diameter
76 mm
Documents and files

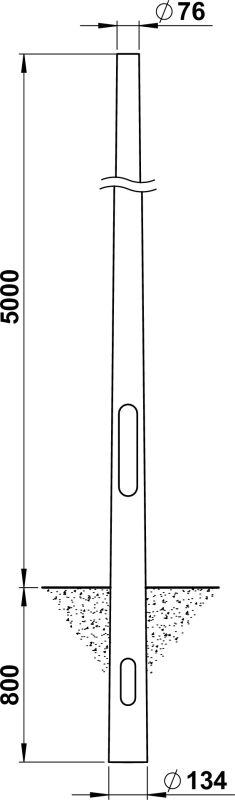

Dimensioned drawing
Full catalog 21 / 22
Accessories
690036 - KÜK Type No. 690036 show

Additional information

Weight 38.80 kg
Model

Cylindrical

Conical tapering

Yes

Top end diameter

76 mm

Diameter at base

134 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Galvanized

Colour

Stainless steel

Light centre height

5 m

Total length

5.8 m

Shape

Eckig

Total length

4501 – 6000 mm
