Data sheet
Wall light Stainless steel Dimensioned drawing Article 690227
Wall light Stainless steel Dimensioned drawing Article 690227
Article number 690227

Wall light

type ..0227

€188,10

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

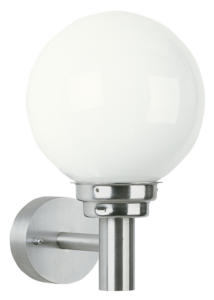

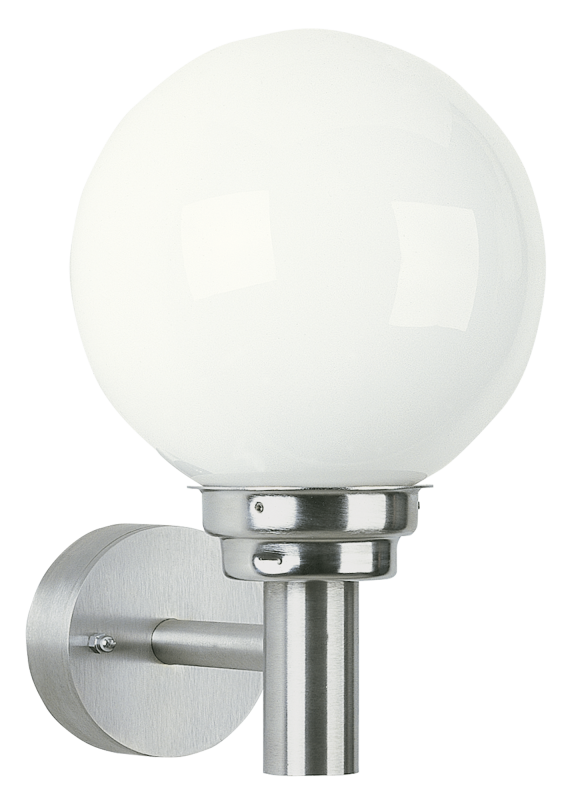

Albert wall lamp 690227
made of stainless steel with opal glass globe d 200 for 1 x incandescent lamp A60 max. 75 Watt, socket E27.protection class IP 44 – protection class : d 200 x 315 x 250 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass structured
Documents and files
Assembly instruction
download PDF 35.09 KB

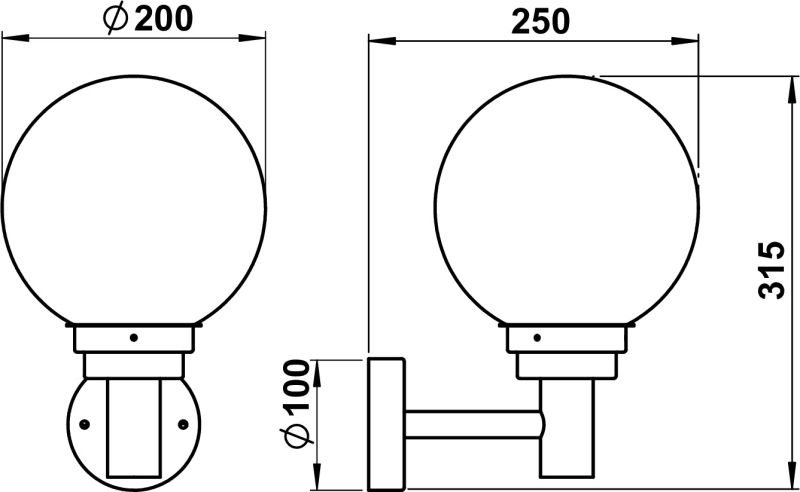

Dimensioned drawing
download PDF 25.41 KB
Light distribution curve - Eulumdat/LDT
download LDT 820 B
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210043 - G 43, glass sphere opal show
Accessories
691004 - Corner bracket type ..1004 show
90750100 - LED Retrofit Classic show

Additional information

Weight 1,80 kg
Material cover

Glass structured
Connection type

Screwed terminal
Material housing

Stainless steel
Dimming phase cut-off

Yes
Suitable for number of lamps

1
Conductor cross section

2.5 mm²
Dimming manufacturer's proprietary system

Yes
Lamp holder

E27
Number of poles

3
Protection class

I
Voltage type

AC
Type of control gear

Not required
Nominal voltage

230 V
Suitable for surface mounting

Yes
Light sharing

Symmetric
Light output

Direct
Highest energy efficiency class of the exchangeable lamp

A++
Length

250 mm
Outer diameter

200 mm
Type of wiring

Ending
Dimming phase cut-on

Yes
Colour housing

Stainless steel
Beam angle

Open beam/diffuse
Light output

1-seitig
Mounting Type

Wand
Light type

Wandleuchte
Dimming depending on control gear

Yes
Max. system power

75 W
Suitable for lamp power

1 – 75 W
Degree of protection (IP)

IP44
Suitable for wall mounting

Yes
No dim function

Yes
Power factor

1
Photobiological safety according to EN 62471

RG1
Unified Glare Ratio (UGR)

1
Height

< 700 mm
Surface protection housing

Untreated
Height/depth

315 mm
Lowest energy efficiency class of the exchangeable lamp

E
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Shape

Eckig
