Article number 690048

Steel pole, 5000 mm, spigot 76

type ..0048

1.014,70

Description

Albert steel pole 690048 hot-dip galvanised and painted, conical. For post-top luminaires and 5,000 mm above floor level, with ground piece 800 76 door, to accommodate a cable transition box 690036.Colour of choice, according to RAL colour chart.

Colour
Stainless steel
Top end diameter
76 mm
Documents and files

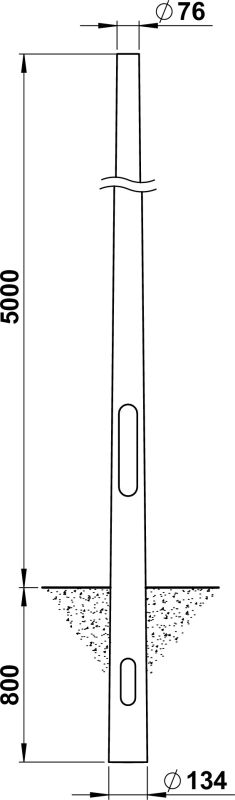

Dimensioned drawing
Full catalog 21 / 22
Accessories
690036 - KÜK Type No. 690036 show

Additional information

Weight 40.80 kg
Model

Cylindrical

Conical tapering

Yes

Top end diameter

76 mm

Diameter at base

134 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Lacquered

Colour

Stainless steel

Light centre height

5 m

Total length

5.8 m

Shape

Eckig

Total length

4501 – 6000 mm
