Data sheet
Steel pole, 6000 mm, spigot 76 Other Dimensioned drawing Article 690069
Steel pole, 6000 mm, spigot 76 Other Dimensioned drawing Article 690069
Article number 690069

Steel pole, 6000 mm, spigot 76

type ..0069

€1.982,90

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert steel pole 690069 hot-dip galvanised and painted, Cylindrically stepped. For post-top luminaires and 6,000 mm above floor level, with earth piece 1,000 76 door, to accommodate a cable transition box 690036.Colour to choice, according to RAL colour chart.

Top end diameter
76 mm
Documents and files

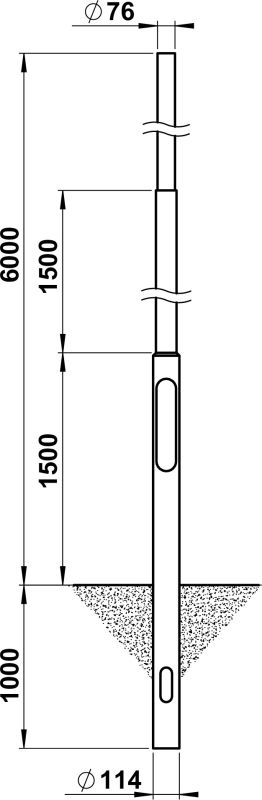

Dimensioned drawing
download PDF 35.1 KB
Full catalog 21 / 22
download PDF 38.74 MB
Accessories
690036 - KÜK Type No. 690036 show

Additional information

Weight 41,40 kg
Model

Cylindrical
Stepped shape

Yes
Top end diameter

76 mm
Diameter at base

114 mm
Wall thickness

3 mm
Material

Steel
Surface protection

Lacquered
Light centre height

6 m
Total length

7 m
Shape

Eckig
