Article number Select a color, please

Wall and ceiling light

type ..6028

123,40

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

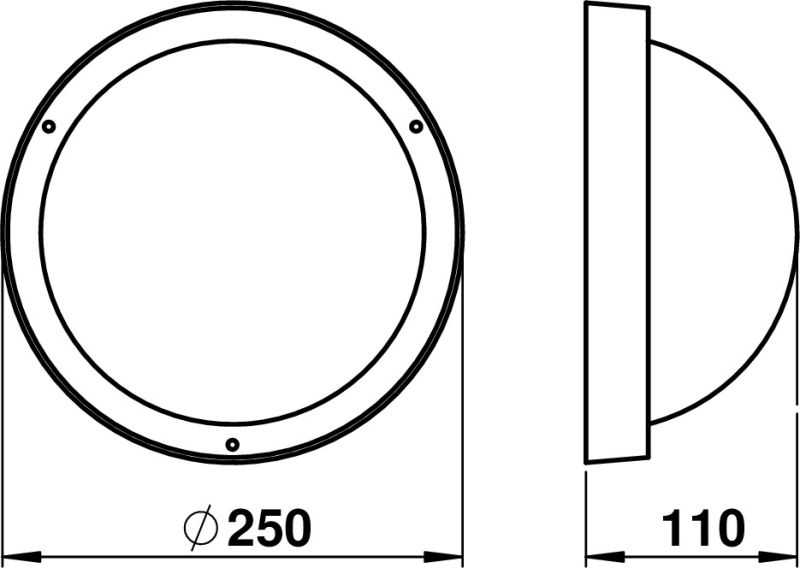

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 666028
Offertext
For: 686028
Full catalog 21 / 22
Spare parts
90210063 - G 63, glass round, opal show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Length

100 mm, 110 mm

Protection class

I

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Power factor

1

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, White

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Shape

Eckig

Dimming depending on control gear

Yes

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Light output

1-seitig

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Type of wiring

Ending

Light sharing

Symmetric

Outer diameter

250 mm

Beam angle

Open beam/diffuse

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Number of poles

3

No dim function

Yes

Photobiological safety according to EN 62471

RG1

Style

Modern

Surface protection housing

Lacquered

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Unified Glare Ratio (UGR)

1
