Article number 696175

Wall and ceiling light

type ..6175

151,20

Description

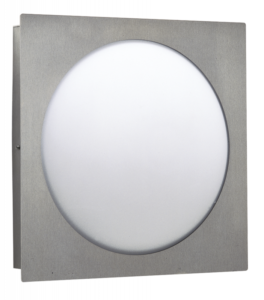

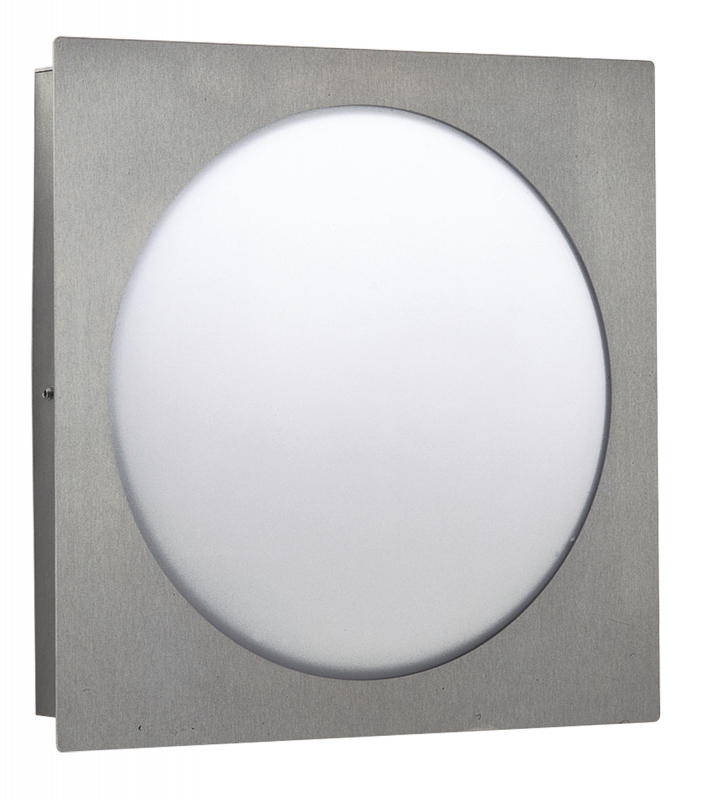

Albert wall and ceiling light 696175
in stainless steel with opal glass, with separate mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : 280 x 280 x 100 mm

Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

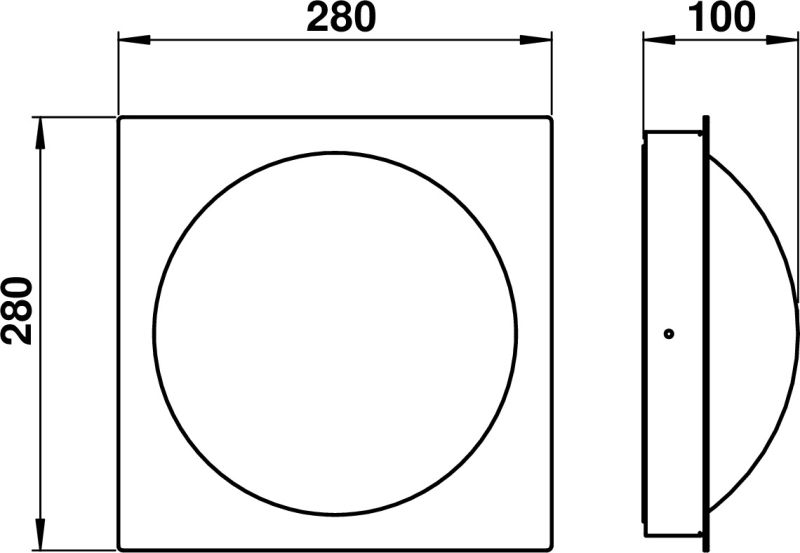

Dimensioned drawing
Light distribution curve
Full catalog 21 / 22
Spare parts
90210305 - G 305, glass round, opal-etched matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight 3.40 kg
Suitable for wall mounting

Yes

Suitable for number of lamps

1

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Protection class

I

Lamp holder

E27

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Light sharing

Symmetric

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

280 mm

Length

100 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

No dim function

Yes

Max. system power

75 W

Beam angle

Open beam/diffuse

Power factor

1

Width

280 mm

Lowest energy efficiency class of the exchangeable lamp

A

Degree of protection (IP)

IP44

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Shape

Eckig

Style

Edelstahl, Modern

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm
